TPNA0505S - 1W 3KVDC Isolated Dual Output DC/DC Converters

TOPPOWER

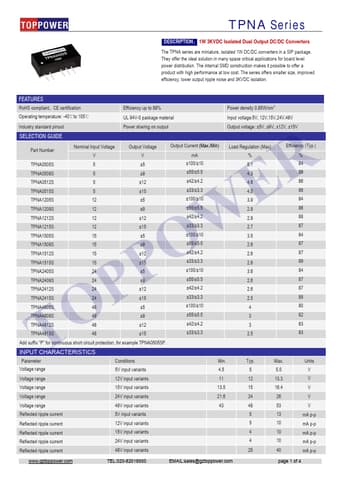

TPNA0505S Datasheet Preview — Preview of TPNA0505S PDF

Datasheet Details

Part number	TPNA0505S
Manufacturer	TOPPOWER
File Size	613.51 KB
Description	1W 3KVDC Isolated Dual Output DC/DC Converters
Datasheet	TPNA0505S-TOPPOWER.pdf

TPNA0505S Product details

Description

1W 3KVDC Isolated Dual Output DC/DC Converters The TPNA series are miniature, isolated 1W DC/DC converters in a SIP package.They offer the ideal solution in many space critical applications for board level power distribution.The internal SMD construction makes it possible to offer a product with high performance at low cost.The series offers smaller size, improved efficiency, lower output ripple noise and 3KVDC isolation.

Features

RoHS compliant、CE certification Operating temperature: -40℃to 105℃ Efficiency up to 89% UL 94V-0 package material Power density 0.85W/cm3 Input voltage:5V, 12V,15V,24V,48V Industry standard pinout Power sharing on output Output voltage: ±5V, ±9V, ±12V, ±15V.
