TPR0305S-1W

1W 3KVDC Isolated Single Output DC/DC Converters

TPR0305S-1W Features

* RoHS compliant 3KVDC isolation Efficiency up to 80% Operating temperature: -40℃ to 105℃ Power density up to 0.90W/cm3 UL 94V-0 package material Footprint from 1.17cm2 Industry standard pinout Input voltage:3.3V,5V, 12V, 15V, 24V Output voltage: 3.3V,5V, 9V,12V, 15V, 24V Custom solutions a

TPR0305S-1W General Description

1W 3KVDC Isolated Single Output DC/DC Converters The TPR-1W series are miniature, isolated 1W DC/DC converters in a SIP package. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it possible to offer a product w.

TPR0305S-1W Datasheet (601.96 KB)

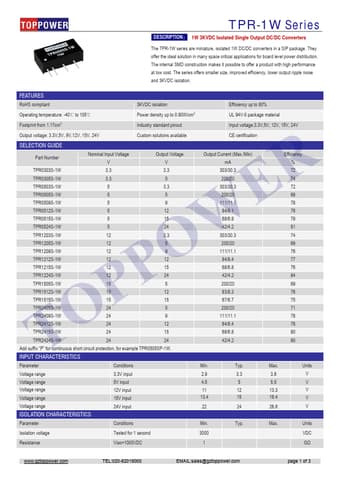

Preview of TPR0305S-1W PDF

Datasheet Details

Part number:

TPR0305S-1W

Manufacturer:

TOPPOWER

File Size:

601.96 KB

Description:

1w 3kvdc isolated single output dc/dc converters.
