TPS2409A

2W 6KVDC Isolated Dual Output DC/DC Converters

TPS2409A Features

* RoHS compliant、CE certification Dual outputs Efficiency to 82% Power density up to 0.44W/cm3 No heatsink required Low profile package UL 94V-0 package material 6KVDC isolation Footprint 4.75cm2 Input voltage: 5V, 12V , 15V, 24V Output voltage: ±5V, ±9V, ±12V, ±15V /5V, 9V,12V,15V Operati

TPS2409A General Description

2W 6KVDC Isolated Dual Output DC/DC Converters The TPS series are miniature, 6KVDC isolated 2W DC/DC-converters in a DIP package with dual output. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it possible t.

TPS2409A Datasheet (558.33 KB)

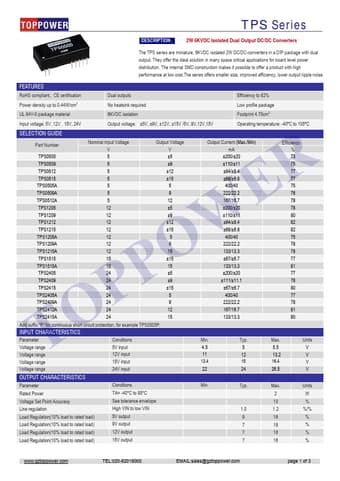

Preview of TPS2409A PDF

Datasheet Details

Part number:

TPS2409A

Manufacturer:

TOPPOWER

File Size:

558.33 KB

Description:

2w 6kvdc isolated dual output dc/dc converters.
