QFN-24 - Packaging Information / Reference Pattern Layout Dimensions

TOREX

Datasheet Details

Part number	QFN-24
Manufacturer	TOREX
File Size	309.53 KB
Description	Packaging Information / Reference Pattern Layout Dimensions
Datasheet	QFN-24 Datasheet
Additional preview pages of the QFN-24 datasheet.

📁 Similar Datasheet

QFN-24B-0.5-01 - NO LEAD B/BT TYPE SOCKET (ETC)
QFN-24B-0.5-01 - NO LEAD B/BT TYPE SOCKET (ETC)
QFN-24B-0.5-02 - NO LEAD B/BT TYPE SOCKET (ETC)
QFN-24B-0.5-02 - NO LEAD B/BT TYPE SOCKET (ETC)
QFN-24BT-0.5-01 - NO LEAD B/BT TYPE SOCKET (ETC)
QFN-24BT-0.5-01 - NO LEAD B/BT TYPE SOCKET (ETC)
QFN-24BT-0.5-01 - NO LEAD B/BT TYPE SOCKET (ETC)
QFN-24BT-0.5-01 - NO LEAD B/BT TYPE SOCKET (ETC)
QFN-24BT-0.65-01 - NO LEAD B/BT TYPE SOCKET (ETC)
QFN-20B-0.5-01 - NO LEAD B/BT TYPE SOCKET (ETC)

Other Datasheets by TOREX

Full PDF Text Transcription

Click to expand full text

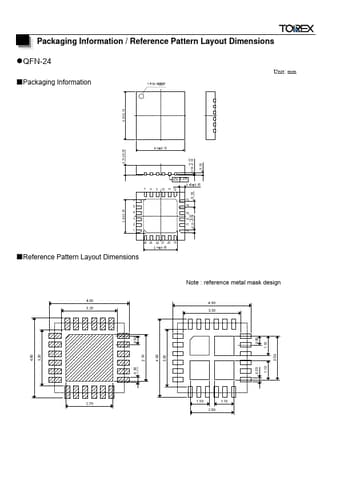

Packaging Information / Reference Pattern Layout Dimensions ●QFN-24 ■Packaging Information 1 PIN INDENT Unit: mm 4.0±0.10 0.075 7 8 9 10 11 12 0.40±0.05 6 13 5 14 4 15 3 16 2 17 1 18 24 23 22 21 20 19 ■Reference Pattern Layout Dimensions 2.8±0.05 Note : reference metal mask design 0.50 0.50 1.10 2.50 4.50 3.30 0.30 2.70 4.60 3.20 1.10 0.25 Taping Specifications ●QFN-24 Reel Unit: mm 0.8 0.6 0.4 0.2 60±0.5 178.0±0.5 0.8 0.6 0.4 0.2 ●Taping Specifications direction of feed R Type :[Device orientation : Right] Standard feed 1.75±0.1 5.5±0.05 (4.35) 12.0±0.3 direction of feed L Type :[Device orientation : Left] Reverse feed ● QFN-24 Power Dissipation Power dissipation data for the QFN-24 is shown in this page.

Published: Mar 13, 2015 |
