TEL15-1212N-HS DC/DC Converters

DC/DC Converter TEL 15N-HS Series, 15 Watt Ultra compact 15 Watt converter in DIP-16 metal casing Special heatsink-case design for maximized temperature capabilities Operating temperature range -40°C to +70°C without derating Wide 2:1 input voltage ranges: 9-18, 18-36, 36-75 VDC High efficiency (up to 87%) for low thermal loss 6-side shielded metal case with insulated baseplate Built-In EN 55032 class A filter (conducted)

TEL15-1212N-HS Features

* a high efficiency of up to 87% which together with the integrated heatsink casing enables an operation temperature of up to +70°C at full load and up to 85°C with 50% load. The converters also have an internal input filter to comply with conducted emission standard EN 55032 class A. It's an economic

TEL15-1211N-HS-TRACOPOWER.pdf

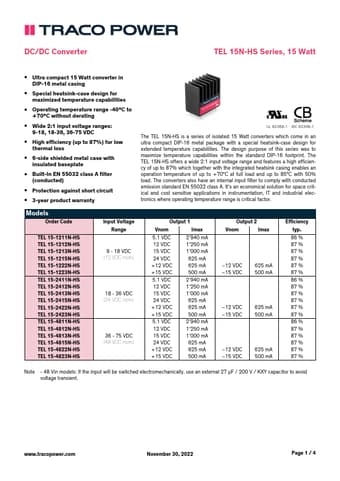

TEL15-1212N-HS Datasheet Preview — This datasheet PDF includes multiple part numbers: TEL15-1212N-HS, TEL15-1211N-HS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TEL15-1212N-HS, TEL15-1211N-HS

Manufacturer:

TRACO POWER

File Size:

1.08 MB

Description:

Dc/dc converters.

Note:

This datasheet PDF includes multiple part numbers: TEL15-1212N-HS, TEL15-1211N-HS.
Please refer to the document for exact specifications by model.
