THB10-1223, THB10-1211 Datasheet - TRACO POWER

THB10-1223 DC/DC Converters

DC/DC Converter THB 10 Series, 10 Watt Supplementary and reinforced insulation I/O isolation 4000 VACrms rated for 300 Vrms working voltage 2 x MOOP Medical safety according to AAMI/ANSI ES 60601-1:2005(R) and IEC/EN 60601-1 3rd edition Industrial safety to UL/IEC/EN 62368-1 ES 60601-1 IEC 60601-1 UL 62368-1 IEC 62368-1 Wide 2:1 input voltage ranges Extended operating temperature range 40°C to 75°C max. Input fi.

THB10-1223 Features

* wide 2:1 input voltage range and fully regulated output voltage. The converters offer an economical solution for demanding applications in industrial and medical instrumentation.

* High reliability

* 3-year product warranty Models Order Code THB 10-1211 THB 10-1212 THB 10-1222 THB

THB10-1211-TRACOPOWER.pdf

This datasheet PDF includes multiple part numbers: THB10-1223, THB10-1211. Please refer to the document for exact specifications by model.

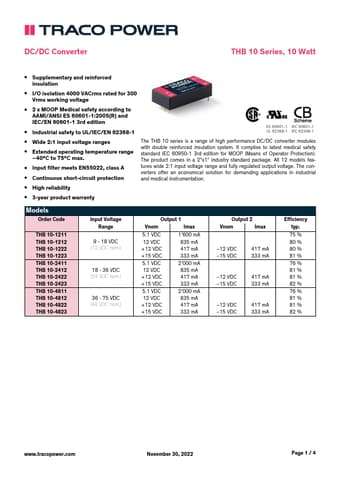

THB10-1223 Datasheet Preview Page 2 THB10-1223 Datasheet Preview Page 3

Datasheet Details

Part number:

THB10-1223, THB10-1211

Manufacturer:

TRACO POWER

File Size:

928.29 KB

Description:

Dc/dc converters.

Note:

This datasheet PDF includes multiple part numbers: THB10-1223, THB10-1211.
Please refer to the document for exact specifications by model.
