TMAP2415S, TMAP0505S, DC/DC Converter

DC/DC Converter TMAP Series, 1 Watt * 1 Watt DC/DC converter in SIP-7-package * Overload and short circuit protection * I/O .

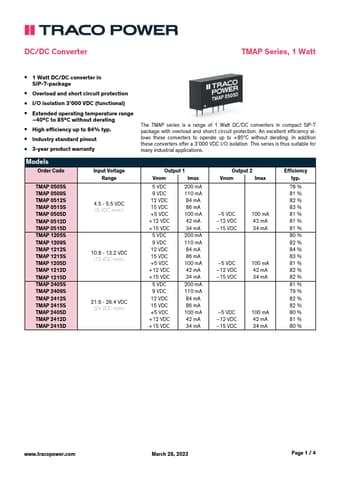

TMAP0505S-TRACOPOWER.pdf

TMAP2415S Datasheet Preview — This datasheet PDF includes multiple part numbers: TMAP2415S, TMAP0505S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TMAP2415S, TMAP0505S

Manufacturer:

TRACO POWER

File Size:

805.91 KB

Description:

DC/DC Converter

Note:

This datasheet PDF includes multiple part numbers: TMAP2415S, TMAP0505S.
Please refer to the document for exact specifications by model.

Applications

* Models Order Code TMAP 0505S TMAP 0509S TMAP 0512S TMAP 0515S TMAP 0505D TMAP 0512D TMAP 0515D TMAP 1205S TMAP 1209S TMAP 1212S TMAP 1215S TMAP 1205D TMAP 1212D TMAP 1215D TMAP 2405S TMAP 2409S TMAP 2412S TMAP 2415S TMAP 2405D TMAP 2412D TMAP 2415D Input Voltage Range 4.5 - 5.5 VDC (5 VDC nom. ) 1
