TMF05124, TMF05105 Datasheet - TRACO POWER

TMF05124 AC/DC Medical Power Supply

AC/DC Medical Power Supply TMF 05 Series, 5 Watt Fully encapsulated power supplies in plasic casing for PCB mount Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP Risk management process according to ISO 14971 incl. risk management file Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3 Low leakage current <100 μA rated for BF applications Operating temperature range: 25°C to +70°C.

TMF05105-TRACOPOWER.pdf

This datasheet PDF includes multiple part numbers: TMF05124, TMF05105. Please refer to the document for exact specifications by model.

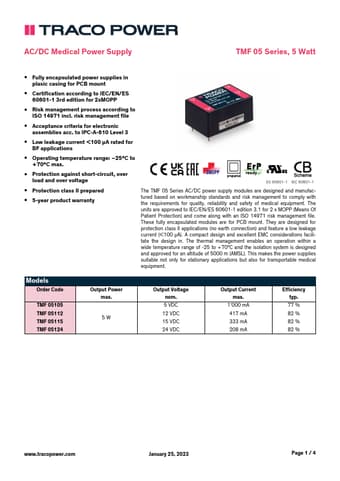

TMF05124 Datasheet Preview Page 2 TMF05124 Datasheet Preview Page 3

Datasheet Details

Part number:

TMF05124, TMF05105

Manufacturer:

TRACO POWER

File Size:

2.24 MB

Description:

Ac/dc medical power supply.

Note:

This datasheet PDF includes multiple part numbers: TMF05124, TMF05105.
Please refer to the document for exact specifications by model.
