TMR10-2410WIR DC/DC Railway Converter

TRACO POWER

Description

DC/DC Railway Converter TMR 10WIR Series, 10 Watt * Compact SIP-8 metal case * EN 50155 and EN 61373 approval for railway applicati.

📥 Download Datasheet

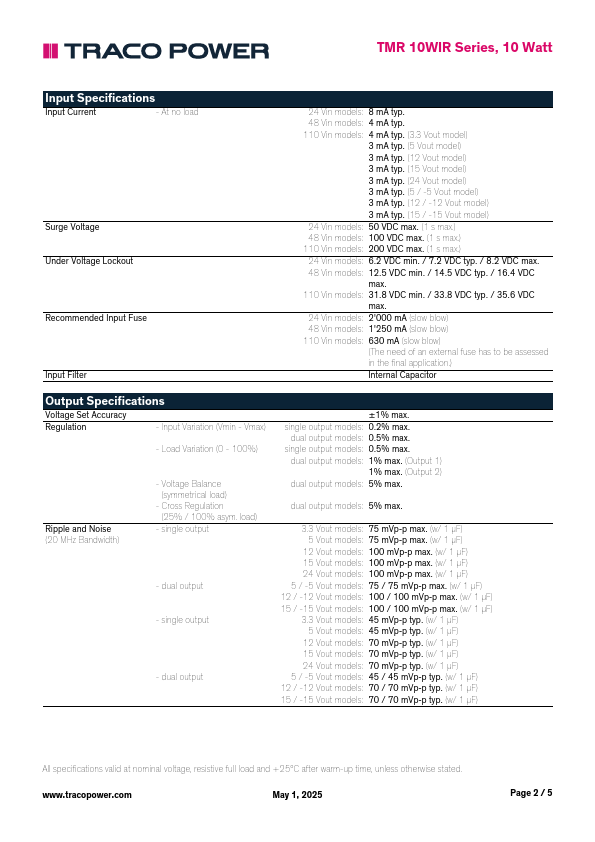

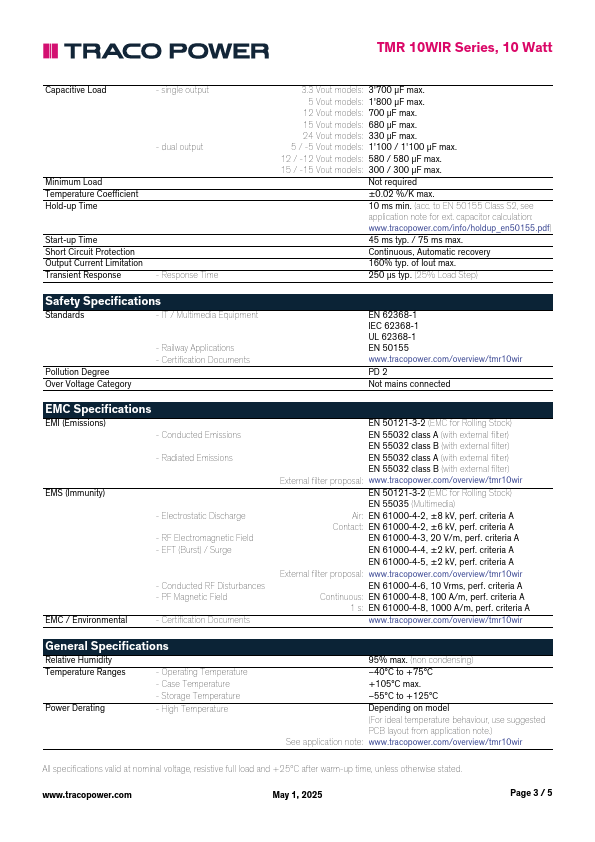

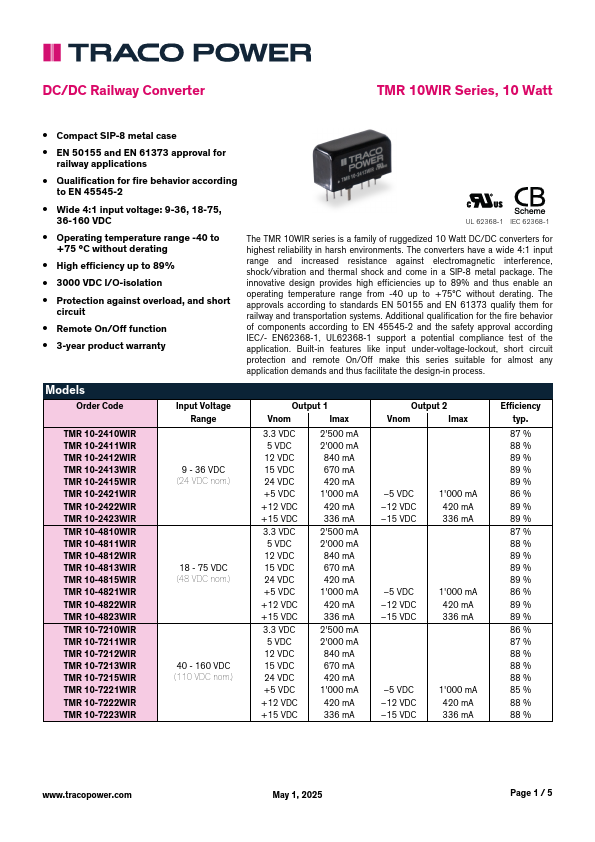

TMR10-2410WIR Datasheet Preview — Preview of TMR10-2410WIR PDF

Datasheet Specifications

Part number: TMR10-2410WIR
Manufacturer: TRACO POWER
File Size: 917.97 KB
Datasheet: TMR10-2410WIR-TRACOPOWER.pdf
Description: DC/DC Railway Converter

Applications

* Qualification for fire behavior according to EN 45545-2
* Wide 4:1 input voltage: 9-36, 18-75, 36-160 VDC UL 62368-1 IEC 62368-1
* Operating temperature range -40 to +75 °C without derating
* High efficiency up to 89%
* 3000 VDC I/O-isolation
* P
