TMR10-2412WIR, TMR10-2410WIR DC/DC Railway Converter

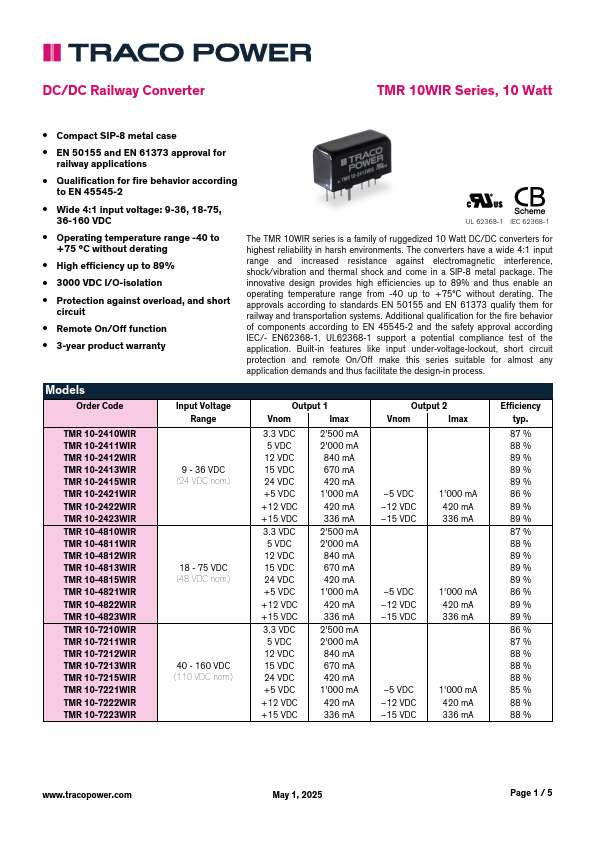

📥 Download Datasheet  Datasheet Preview Page 1

Description

DC/DC Railway Converter TMR 10WIR Series, 10 Watt * Compact SIP-8 metal case * EN 50155 and EN 61373 approval for railway applicati.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TMR10-2412WIR, TMR10-2410WIR. Please refer to the document for exact specifications by model.

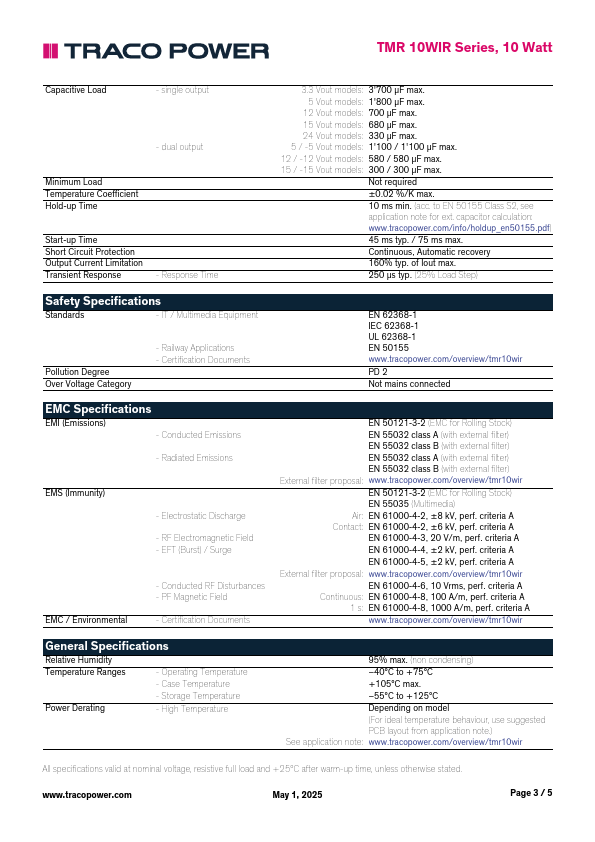

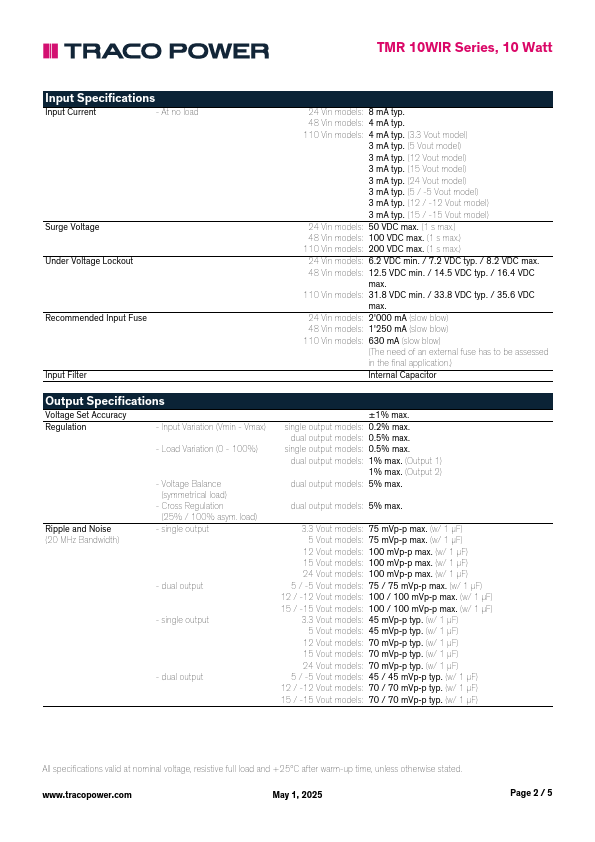

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
TMR10-2412WIR, TMR10-2410WIR
Manufacturer
TRACO POWER
File Size
917.97 KB
Datasheet
TMR10-2410WIR-TRACOPOWER.pdf
Description
DC/DC Railway Converter
Note
This datasheet PDF includes multiple part numbers: TMR10-2412WIR, TMR10-2410WIR.
Please refer to the document for exact specifications by model.

Applications

* Qualification for fire behavior according to EN 45545-2
* Wide 4:1 input voltage: 9-36, 18-75, 36-160 VDC UL 62368-1 IEC 62368-1
* Operating temperature range -40 to +75 °C without derating
* High efficiency up to 89%
* 3000 VDC I/O-isolation
* P
