TMR10-2422WIR
features like input under-voltage-lockout, short circuit protection and remote On/Off make this series suitable for almost any application demands and thus facilitate the design-in process.

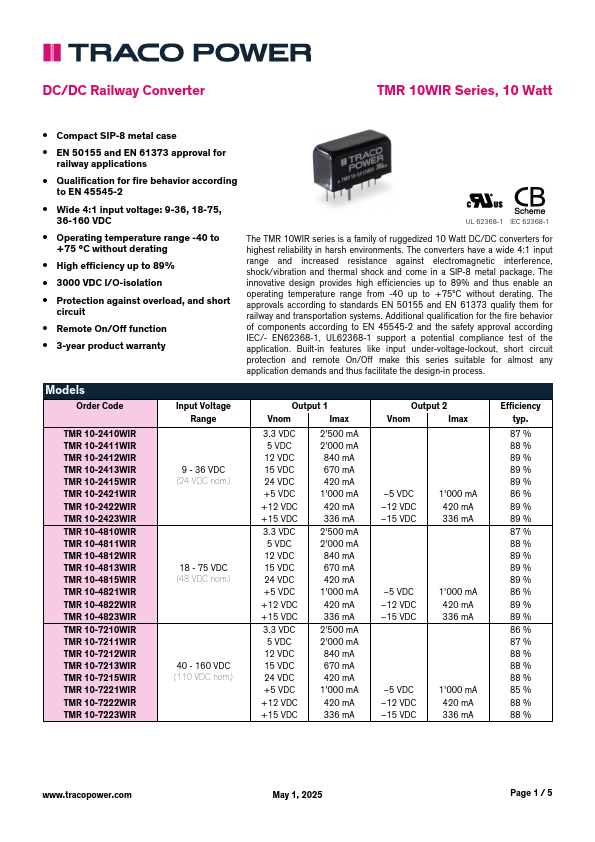

Models
Order Code
TMR 10-2410WIR TMR 10-2411WIR TMR 10-2412WIR TMR 10-2413WIR TMR 10-2415WIR TMR 10-2421WIR TMR 10-2422WIR TMR 10-2423WIR TMR 10-4810WIR TMR 10-4811WIR TMR 10-4812WIR TMR 10-4813WIR TMR 10-4815WIR TMR 10-4821WIR TMR 10-4822WIR TMR 10-4823WIR TMR 10-7210WIR TMR 10-7211WIR TMR 10-7212WIR TMR 10-7213WIR TMR 10-7215WIR TMR 10-7221WIR TMR 10-7222WIR TMR 10-7223WIR
Input Voltage Range
- 36 VDC (24 VDC nom.)
- 75 VDC (48 VDC nom.)
- 160 VDC (110 VDC nom.)
Output 1
Vnom
Imax
3.3 VDC
2'500 m A
5 VDC
2'000 m A
12 VDC
840 m A
15 VDC
670 m A
24 VDC
420 m A
+5 VDC
1'000 m A
+12 VDC
420 m A
+15 VDC
336 m A
3.3 VDC
2'500 m A
5 VDC
2'000 m A
12 VDC
840 m A
15 VDC
670 m A
24 VDC
420 m...
