TEN40-1210E DC/DC Converter

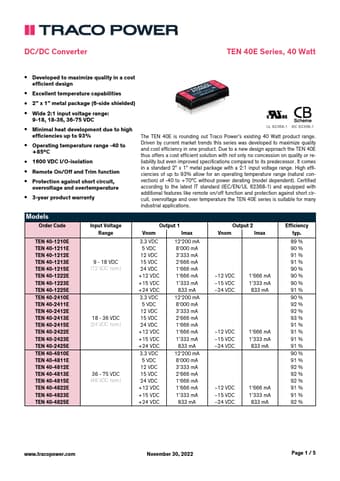

DC/DC Converter TEN 40E Series, 40 Watt Developed to maximize quality in a cost efficient design Excellent temperature capabilities 2” x 1” metal package (6-side shielded) Wide 2:1 input voltage range: 9-18, 18-36, 36-75 VDC Minimal heat development due to high efficiencies up to 93% Operating temperature range -40 to +85°C 1600 VDC I/O-isolation Remote On/Off and Trim function Protection against short.

TEN40-1210E Features

* like remote on/off function and protection against short circuit, overvoltage and over temperature the TEN 40E series is suitable for many industrial applications. Models Order Code TEN 40-1210E TEN 40-1211E TEN 40-1212E TEN 40-1213E TEN 40-1215E TEN 40-1222E TEN 40-1223E TEN 40-1225E TEN 40-2410E
