TC3133 Datasheet, Mmic, TRANSCOM

✔ TC3133 Features

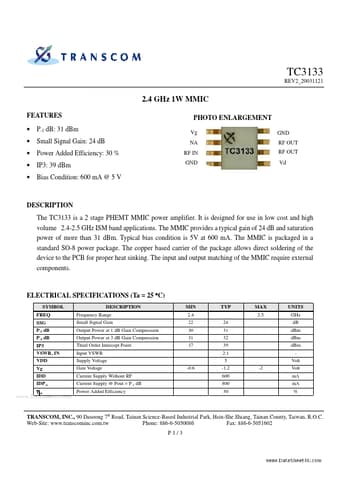

P-1 dB: 31 dBm Small Signal Gain: 24 dB Power Added Efficiency: 30 % IP3: 39 dBm Bias Condition: 600 mA @ 5 V PHOTO ENLARGEMENT Vg NA RF IN GND GND RF OUT RF OU

✔ TC3133 Application

The MMIC provides a typical gain of 24 dB and saturation power of more than 31 dBm. Typical bias condition

PDF File Details

Part number:

TC3133

Manufacturer:

TRANSCOM

File Size:

110.41kb

Download:

📄 Datasheet

Description:

2.4 ghz 1w mmic. The TC3133 is a 2 stage PHEMT MMIC power amplifier. It is designed for use in low cost and high volume 2.4-2.5 GHz ISM band applicati

📥 Download PDF (110.41kb)
