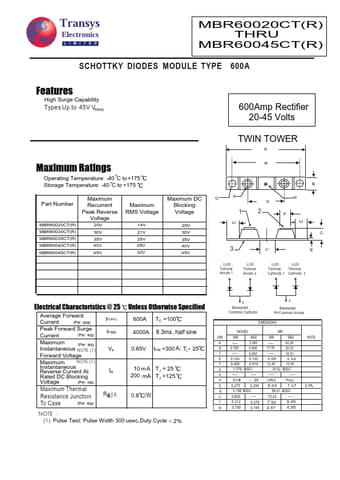

MBR60020CT
Features
High Surge Capability
Types Up to 45V VRRM
600Amp Rectifier 20-45 Volts TWIN TOWER
Maximum Ratings
Operating Temperature: -40 C to +175 Storage Temperature: -40 C to +175 Part Number Maximum Recurrent Peak Reverse Voltage
20V 30V 35V 40V 45V
Maximum RMS Voltage
14V 21V 25V 28V 32V
Maximum DC Blocking Voltage
20V 30V 35V http://..net/
MBR60020CT(R) MBR60030CT(R) MBR60035CT(R) MBR60040CT(R) MBR60045CT(R)
40V 45V
LUG Teminal Anode 1 LUG Teminal Anode 2
LUG LUG Teminal Teminal Cathode 1 Cathode 2
Electrical Characteristics @ 25
Average Forward (Per pkg) Current Peak Forward Surge (Per leg) Current Maximum (Per leg) Instantaneous NOTE (1) Forward Voltage NOTE (1) Maximum Instantaneous Reverse Current At Rated DC Blocking Voltage (Per leg) IF(AV) IFSM VF
Unless Otherwise Specified
600A 4000A 0.65V TC =100
3 Baseplate mon Cathode
Baseplate R=mon Anode
DIMENSIONS INCHES MIN MAX ----¼ 3.360 0.800 0.700 ----0.650 0.120 0.130...
