MBR4060CT, MBR4040CT - 40 AMPERES SCHOTTKY BARRIER RECTIFIERS

MBR4060CT Description

MBR4040CT~MBR40200CT MBR4040CT~MBR40200CT 40 AMPERES SCHOTTKY BARRIER RECTIFIERS DRAWING Voltage 40 to 200 Volts Current 40 Amperes .

MBR4060CT Features

* Plastic package has underwriters laboratory Flammability classification 94v-O. Flame retardant epoxy molding compound.
* Metal silicon junction, majority carrier condition.
* Low power loss, high efficiency.
* High current capability
* Guarding for over voltage protectio

MBR4060CT Applications

* In compliance with EU ROHS 2002/95/EC directives.
* Case:TO-220C Maximum ratings and Electrical Characteristics Ratings at 25℃ ambient temperature unless otherwise specified phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symb MBR MB

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR4060CT, MBR4040CT. Please refer to the document for exact specifications by model.

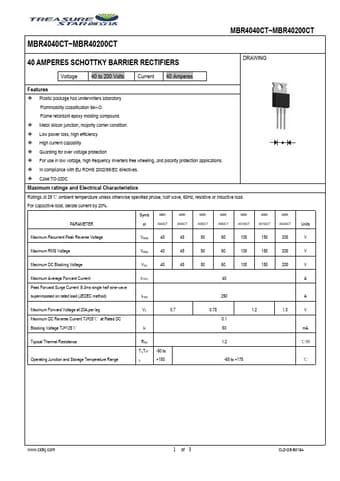

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR4060CT, MBR4040CT
Manufacturer
TREA SURE STAR
File Size
229.94 KB
Datasheet
MBR4040CT-TREASURESTAR.pdf
Description
40 AMPERES SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MBR4060CT, MBR4040CT.
Please refer to the document for exact specifications by model.
