FS24-250-C2 Datasheet - TRIAD MAGNETICS

FS24-250-C2 CLASS 2/3 TRANSFORMER

The FS24-250-C2 is a series/parallel primary and dual secondary, split bobbin design which operates with either a parallel input of 115V or a series input of 230V. The secondaries are 12V @ 0.25A each. They can be used independently (up to 300V difference between them) or in series for double the v.

FS24-250-C2-TRIADMAGNETICS.pdf

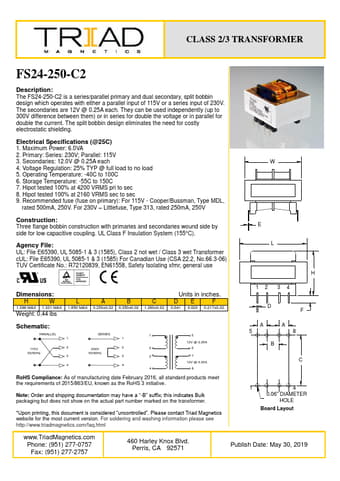

Preview of FS24-250-C2 PDF

Datasheet Details

Part number:

FS24-250-C2

Manufacturer:

TRIAD MAGNETICS

File Size:

103.25 KB

Description:

Class 2/3 transformer.
