TR2906SZ Datasheet - TRSYS

Datasheet Details

Part number:

TR2906SZ

Manufacturer:

TRSYS

File Size:

284.10 KB

Description:

RECTIFIER DIODE

TR2906SZ PACKAGE DETAILS For further package information, please contact your local Customer Service Centre.

All dimensions in mm, unless stated otherwise.

DO NOT SCALE.

2 holes Ø3.6 ± 0.5 depth 2.0 (One in each electrode) Cathode Ø151 max Ø100 37.5 max Ø100 Ø148 max Anode Nominal weight: 2800g

TR2906SZ_TRSYS.pdf

Preview of TR2906SZ PDF

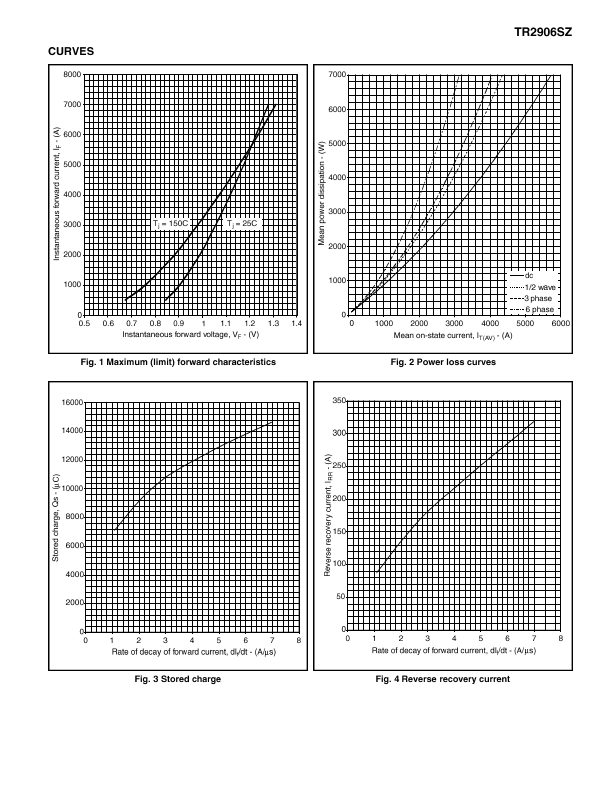

TR2906SZ Datasheet Preview Page 2 TR2906SZ Datasheet Preview Page 3

TR2906SZ, RECTIFIER DIODE

TR2906SZ PACKAGE DETAILS For further package information, please contact your local Customer Service Centre.

All dimensions in mm, unless stated otherwise.

DO NOT SCALE.

2 holes Ø3.6 ± 0.5 depth 2.0 (One in each electrode) Cathode Ø151 max Ø100 37.5 max Ø100 Ø148 max Anode Nominal weight: 2800g Clamping force: 83kN ±10% Package outline type code: Z
