YX805F Datasheet - TRU

YX805F-TRU.pdf

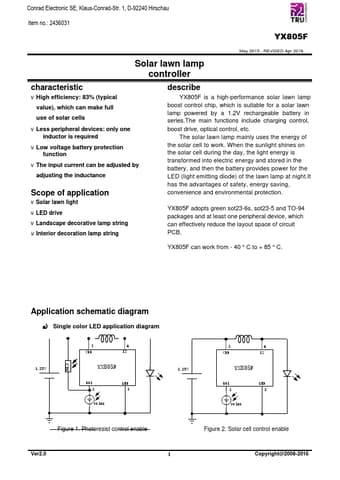

Preview of YX805F PDF
YX805F Datasheet Preview Page 2 YX805F Datasheet Preview Page 3

Datasheet Details

Part number:

YX805F

Manufacturer:

TRU

File Size:

565.90 KB

Description:

Solar lawn lamp controller.

YX805F, Solar lawn lamp controller

SOT23-6S YX805F YX805FST25 SOT23-5 YX805F YX805FT004 TO-94 Storage temperature -65℃ to +125℃ Package mark -65℃ to +125℃ -65℃ to +125℃ Packaging selection Tape and Reel Tape and Reel Bag remarks Ver2.0 2 Copyright@2009-2017 Pin 1 2 4 6 3,5 Pin 1 2 3 4 5 Pin 1 nam e VDD GND LX SOL N

Conrad Electronic SE, Klaus-Conrad-Str.

1, D-92240 Hirschau Item no.: 2436031 YX805F May 2015 - REVISED Apr 2016 Solar lawn lamp controller characteristic v High efficiency: 83% (typical value), which can make full use of solar cells v Less peripheral devices: only one inductor is required v Low voltage battery protection function v The input current can be adjusted by adjusting the inductance Scope of application v Solar lawn light v LED drive v Landscape decorative lamp string v Interior
