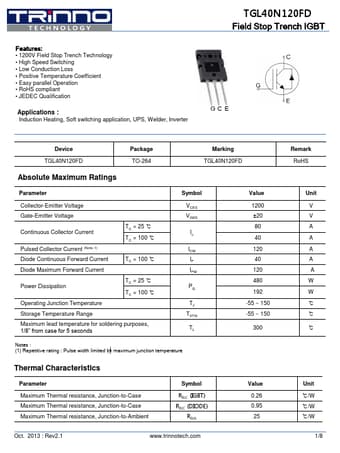

TGL40N120FD Datasheet, Igbt, TRinno

✔ TGL40N120FD Features

1200V Field Stop Trench Technology
High Speed Switching
Low Conduction Loss
Positive Temperature Coefficient
Easy parallel Operation
RoHS compliant
JEDEC Q

✔ TGL40N120FD Application

: Induction Heating, Soft switching application, UPS, Welder, Inverter TGL40N120FD Field Stop Trench IGBT G

PDF File Details

Part number:

TGL40N120FD

Manufacturer:

TRinno

File Size:

958.22kb

Download:

📄 Datasheet

Description:

Field stop trench igbt.

📥 Download PDF (958.22kb)
