DB102G - (DB101G - DB107G) Glass Passivated Bridge Rectifiers

Product Overview

TSC

Part number	DB102G
Manufacturer	TSC
File Size	147.99 KB
Description	(DB101G - DB107G) Glass Passivated Bridge Rectifiers
Datasheet	DB102G Datasheet
Note	This datasheet PDF includes multiple part numbers: DB102G, DB101G. Please refer to the document for exact specifications by model.

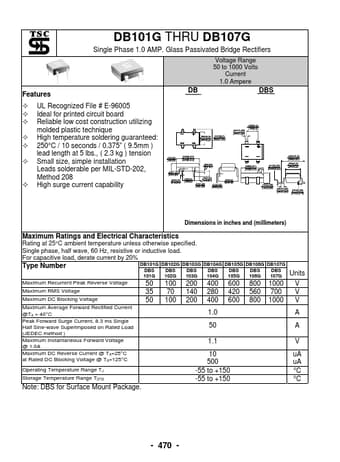

Additional preview pages of the DB102G datasheet.

a a a a a a a UL Recognized File # E-96005 Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique High temperature soldering guaranteed: 250°C / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Small size, simple installation Leads solderable per MIL-STD-202, Method 208 High surge current capability DB DBS Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25°C ambient temperature u.
