SMD284 Datasheet - TSEC

Surface Mount Resistor

SMD284 Surface Mount Resistor Issue 1.0 November 2011 TSEC manufacture a range of SMD resistor networks which cover a wide range of resistances and a selection of TCR’s. Any nominal resistance in each range may be manufactured to low absolute and ratio tolerances . The SMD resistor networks are designed to be Flip chip mounted but they may also be Aluminium wire bonded. Typical Layout Units 1 - 2, Tanfield Lea South Industrial Estate, Stanley, Co Durham DH9 9XA Telephone : + 44 (0) 1207 230 728.

SMD284 Datasheet (135.76 KB)

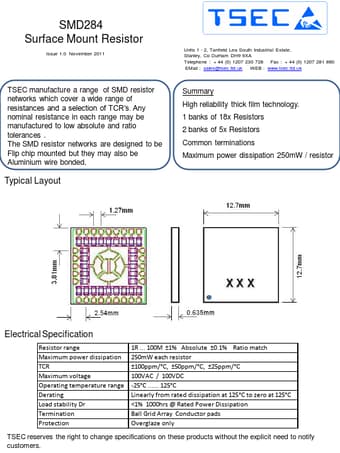

SMD284 Datasheet Preview — Preview of SMD284 PDF

Datasheet Details

Part number:

SMD284

Manufacturer:

TSEC

File Size:

135.76 KB

Description:

Surface mount resistor.
