1N5711CSM Datasheet - TT

1N5711CSM SCHOTTKY BARRIER DIODE

SCHOTTKY BARRIER DIODE 1N5711CSM High Breakdown Voltage (VBR = 70V) Low Forward Voltage Hermetic Ceramic Surface Mount Package Suitable for Low Current, Fast Switching Applications. Screening Options Available ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated) VBR Breakdown Voltage 70V VRRM Repetitive Peak Reverse Voltage 70V IF Forward Current 15mA PD Total Power Dissipation at TA = 25°C 250mW Derate Above 25°C 2.5mW/°C .

1N5711CSM-TT.pdf

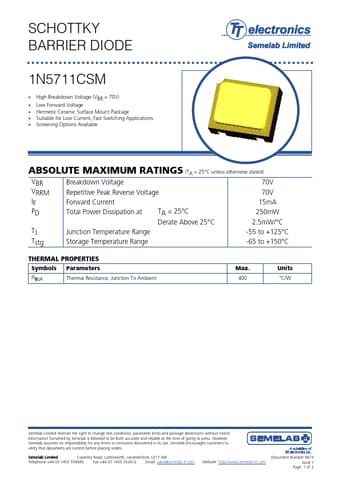

1N5711CSM Datasheet Preview — Preview of 1N5711CSM PDF

1N5711CSM Datasheet Preview Page 2

Datasheet Details

Part number:

1N5711CSM

Manufacturer:

TT

File Size:

347.60 KB

Description:

Schottky barrier diode.
