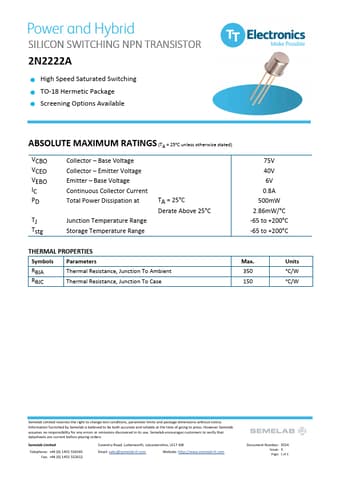

SILICON SWITCHING NPN TRANSISTOR 2N2222A
High Speed Saturated Switching TO-18 Hermetic Package Screening Options Available
ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated)
VCBO VCEO VEBO IC PD
TJ Tstg
Collector – Base Voltage Collector – Emitter Voltage Emitter – Base Voltage Continuous Collector Current Total Power Dissipation at
Junction Temperature Range Storage Temperature Range
TA = 25°C Derate Above 25°C
75V 40V 6V 0.8A 500mW 2.86mW/°C -65 to +200°C -65 to +200°C
THERMAL PROPERTIES
Symbols Parameters
RθJA
Thermal Resistance, Junction To Ambient
RθJC
Thermal Resistance, Junction To Case
Max. 350 150
Units °C/W °C/W
Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.
2N2222A Datasheet
