4N47 - Hi-Reliability Optically Coupled Isolator

Name: 4N47
SKU: 4N47-1205570

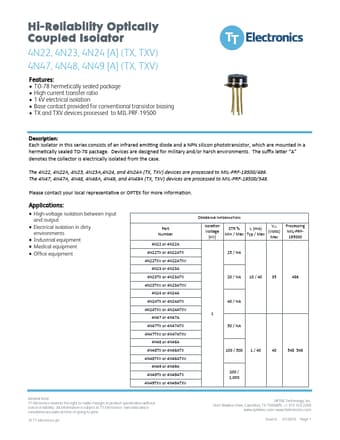

The 4N47 by TT is a Hi-Reliability Optically Coupled Isolator. Below is the official datasheet preview.

📥 Download Datasheet

4N47 Hi-Reliability Optically Coupled Isolator by TT - Datasheet Preview — Official preview page of the **4N47** Hi-Reliability Optically Coupled Isolator datasheet (TT).

Datasheet Details

Part number	4N47
Manufacturer	TT
File Size	331.14 KB
Description	Hi-Reliability Optically Coupled Isolator
Datasheet	4N47-TT.pdf
Additional preview pages of the 4N47 datasheet.

4N47 Product details

Description

Each isolator in this series consists of an infrared emi ng diode and a NPN silicon phototransistor, which are mounted in a herme cally sealed TO‐78 package.

Features

 TO-78 hermetically sealed package.
 High current transfer ratio.
 1 kV electrical isolation.
 Base contact provided for conventional transistor biasing.
 TX and TXV devices processed to MIL-PRF-19500.
