IP117HVSMD05 - POSITIVE ADJUSTABLE VOLTAGE REGULATOR

This page provides the datasheet information for the IP117HVSMD05, a member of the IP117SMD05 POSITIVE ADJUSTABLE VOLTAGE REGULATOR family.

Description

The 117 Series regulators are adjustable 3 terminal voltage regulators capable of supplying in excess of 1.5A over an output voltage range of 1.25V to 40V (HV Series, 60V).

The regulators are exceptionally easy to apply requiring only 2 external resistors to set the output voltage.

Features

  • 1.5A Output Current Guaranteed.
  • Internal Thermal Overload Protection.
  • Output Short Circuit Protected.
  • Hermetic Ceramic Surface Mount Package.
  • Screening Options Available.

📥 Download Datasheet

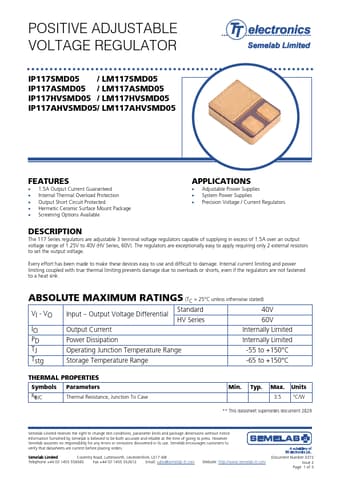

Datasheet preview – IP117HVSMD05
