OP750D, OP750 Silicon Phototransistor

OP750D Description

NPN Silicon Phototransistor OP550, OP552, OP555, OP560, OP565, OP750, OP755 Series OP552 .
OP550, OP552, OP555, OP750, OP755, OP770 and OP775 series consists of a NPN silicon phototransistor molded in an epoxy package with a wide receiving.

OP750D Features

* Wide receiving angle
* Four sensi vity ranges
* Side-looking package
* Ideal for space-limited applica ons
* Ideal for PCBoard moun ng

OP750D Applications

* Applica ons requiring wide receiving angle
* Applica ons requiring PCBoard moun ng
* Space-limited applica ons
* Op cal switches
* Op cal interrupt detectors
* Op cal encoders
* Non-contact posi on sensing
* Machine automa on RoHS O

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OP750D, OP750. Please refer to the document for exact specifications by model.

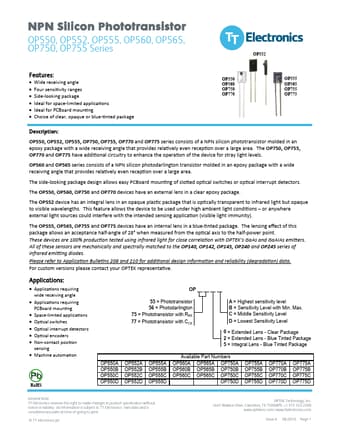

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OP750D, OP750
Manufacturer
TT
File Size
604.21 KB
Datasheet
OP750-TT.pdf
Description
Silicon Phototransistor
Note
This datasheet PDF includes multiple part numbers: OP750D, OP750.
Please refer to the document for exact specifications by model.
