OPB608C, OPB608A, Reflective Object Sensor

Reflective Object Sensor OPB608A, OPB608B, OPB608C, OPB608R, OPB608V .
OPB608 reflective switches consist of an infrared emitting device (LED or VCSEL) and a NPN silicon phototransistor mounted “side-by-side” on a parall.

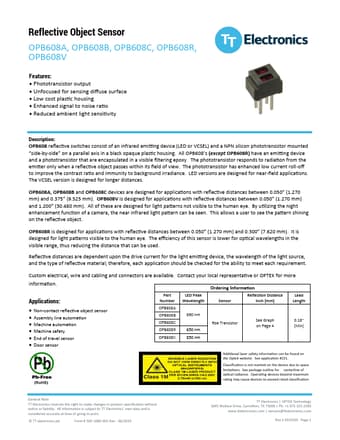

datasheet Preview Page 1 from Datasheet4u.com

OPB608A-TT.pdf

OPB608C Datasheet Preview — This datasheet PDF includes multiple part numbers: OPB608C, OPB608A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

OPB608C, OPB608A

Manufacturer:

File Size:

564.51 KB

Description:

Reflective Object Sensor

Note:

This datasheet PDF includes multiple part numbers: OPB608C, OPB608A.
Please refer to the document for exact specifications by model.

Features

* Phototransistor output
* Unfocused for sensing diffuse surface
* Low cost plastic housing
* Enhanced signal to noise ratio

Applications

* The VCSEL version is designed for longer distances. OPB608A, OPB608B and OPB608C devices are designed for applications with reflective distances between 0.050” (1.270 mm) and 0.375” (9.525 mm). OPB608V is designed for applications with reflective distances between 0.050” (1.270 mm) and 1.200” (30.
