OPB685-3

Optical Flag Switch

OPB685-3 Features

* Photologic® output

* Four output options

* Mechanical switch replacement

* Printed circuit board mounting (OPB685-3)

* 2.5mm, 3-pin connector mates with Molex connector 5051 series housing and 4809 series terminal for OPB695 Series OPB695 Description: Each OPB685-3 and OPB69

OPB685-3 General Description

Each OPB685-3 and OPB695 series flag switch consists of an infrared emitting diode and a monolithic integrated circuit that incorporates a photodiode, a linear amplifier and a Schmitt trigger. A lever arm actuated flag interrupts the light beam, which switches the output between states that can rea.

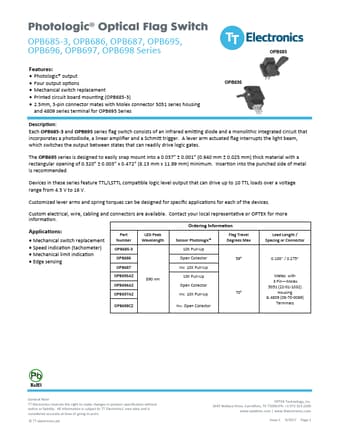

OPB685-3 Datasheet (0.97 MB)

Preview of OPB685-3 PDF

Datasheet Details

Part number:

OPB685-3

Manufacturer:

TT

File Size:

0.97 MB

Description:

Optical flag switch.
