OPB700ALZ

Reflective Object Sensor

OPB700ALZ Features

* Low profile to facilitate stacking

* Low cost plastic housing

* Choice of phototransistor or photodarlington output

* #26 AWG lead wire in 4” (101 mm), or 18” (457 mm) lengths Description: OPB700 and OPB700ALZ sensors consist of an infrared emitting diode and a NP

OPB700ALZ General Description

OPB700 and OPB700ALZ sensors consist of an infrared emitting diode and a NPN silicon phototransistor, mounted side-byside on converging optical axes in a black plastic housing. OPB701 and OPB701ALZ sensors consist of an infrared emitting diode and a NPN silicon photodarlington, mounted side-byside.

OPB700ALZ Datasheet (447.66 KB)

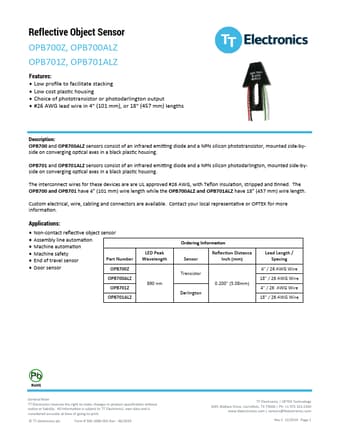

Preview of OPB700ALZ PDF

Datasheet Details

Part number:

OPB700ALZ

Manufacturer:

TT

File Size:

447.66 KB

Description:

Reflective object sensor.
