OPB733TR

Reflective Object Sensor

OPB733TR Features

* Unfocused for sensing diffuse surfaces

* Uses lensed devices for collimation of light beam

* Low-cost plastic housing

* Compact surface mount package 0.300” x 0.160” x 0.114” [7.6mmx4.1mmx2.9mm]

* Typical peak emission wavelength 890nm

* Reduced visible ambient light sensi

OPB733TR General Description

The OPB733TR consists of an 890nm, Infrared Light Emitting Diode (LED) and an NPN silicon Phototransistor, which are mounted “side-by-side” on parallel axes in a miniature surface mount grey plastic housing. The Phototransistor is molded in a grey epoxy package, which minimizes visible ambient ligh.

OPB733TR Datasheet (0.96 MB)

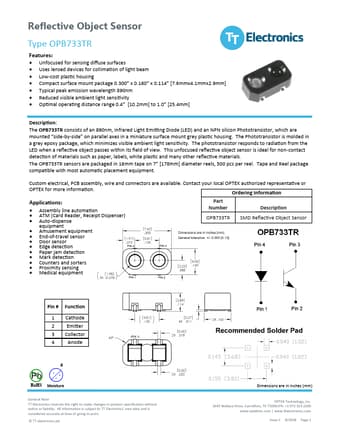

Preview of OPB733TR PDF

Datasheet Details

Part number:

OPB733TR

Manufacturer:

TT

File Size:

0.96 MB

Description:

Reflective object sensor.
