TS86246P Datasheet, switch equivalent, Tagore

PDF File Details

Part number: TS86246P

Manufacturer: Tagore

File Size: 836.60KB

Download: 📄 Datasheet

Description: SPDT 200W Average Power Switch

Datasheet Preview: TS86246P 📥 Download PDF (836.60KB)

TS86246P Features and benefits


* Low insertion loss: 0.08dB @ 1 MHz
* High isolation: 58 dB @ 1 MHz, 49 dB @ 30 MHz
* 200W CW Power
* No external DC blocking capacitors on RF lines
.

TS86246P Application


* Private mobile and Tactical HF Radios
* Public safety HF handsets
* Ham Radios
* MRI Machine
* Mec.

TS86246P Description

The TS86246P is a 2nd Generation symmetrical reflective Single Pole Dual Throw (SPDT) switch designed for high power switching applications. The TS86246P covers 1MHz to 600MHz bandwidth and provides low insertion loss, high isolation, and high linear.

Image gallery

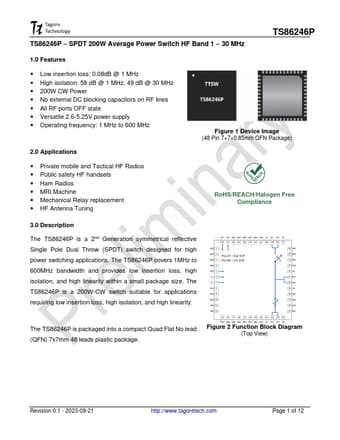

Page 2 of TS86246P Page 3 of TS86246P
