RJ-032

The RJ-032 is Single 10/100 BASE-TX Filtered Connector Module designed by Taimag.

Product Overview

Part number	RJ-032
Manufacturer	Taimag
File Size	378.32 KB
Description	Single 10/100 BASE-TX Filtered Connector Module
Datasheet	RJ-032_Taimag.pdf
Additional preview pages of the RJ-032 datasheet.

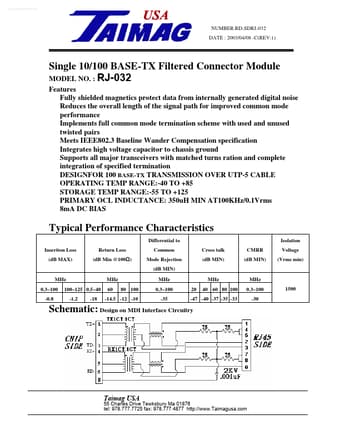

Fully shielded magnetics protect data from internally generated digital noise Reduces the overall length of the signal path for improved common mode performance Implements full common mode termination scheme with used and unused twisted pairs Meets IEEE802.3 Baseline Wander Compensation specification Integrates high voltage capacitor to chassis ground Supports all major transceivers with matched turns ration and complete integration of specified termination.
