TM2001 - 2.4-2.5GHz Front End Module

Datasheet Summary

Description

The TM2001 manufactured on LTCC technology is a high integration front-end module for wireless application between 2.4 to 2.5GHz ISM band.

Consisting of a low noise amplifier and a high efficiency power amplifier, the TM2001 offers significant increases in operating range and performance.

Features

  • analog power control to optimize transmit power while maximizing battery life in portable equipments. The power control function also eliminates the need for directional couplers, detector diodes and other power control circuitry. This allows the device to be directly driven by the DAC output. All modules are screened at operating frequency prior to delivery for guaranteed performance. Features.
  • Consisting of a LNA and a.

📥 Download Datasheet

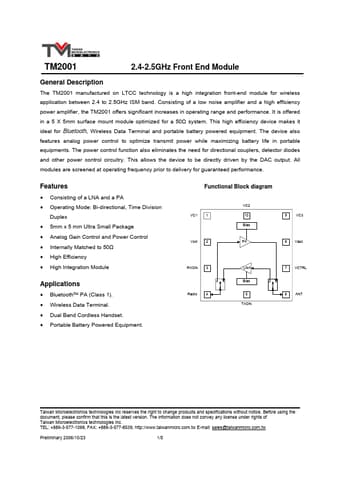

Datasheet preview – TM2001

Datasheet Details

Part number TM2001
Manufacturer Taiwan Microelectronics
File Size 124.65 KB
Description 2.4-2.5GHz Front End Module
Datasheet download datasheet TM2001 Datasheet
Additional preview pages of the TM2001 datasheet.

📁 Similar Datasheet

  • TM200CZ-24 - THYRISTOR (Mitsubishi Electric Semiconductor)
  • TM200CZ-2H - THYRISTOR (Mitsubishi Electric Semiconductor)
  • TM200CZ-H - THYRISTOR (Mitsubishi Electric Semiconductor)
  • TM200CZ-M - THYRISTOR (Mitsubishi Electric Semiconductor)
  • TM200DZ-24 - THYRISTOR (Mitsubishi Electric Semiconductor)
  • TM200DZ-2H - THYRISTOR (Mitsubishi Electric Semiconductor)
  • TM200DZ-H - THYRISTOR (Mitsubishi Electric Semiconductor)
  • TM200DZ-M - THYRISTOR (Mitsubishi Electric Semiconductor)
  • TM200EZ-24 - THYRISTOR (Mitsubishi Electric Semiconductor)
  • TM200EZ-2H - THYRISTOR (Mitsubishi Electric Semiconductor)
Other Datasheets by Taiwan Microelectronics

    Full PDF Text Transcription

    Click to expand full text
    TM2001 2.4-2.5GHz Front End Module General Description The TM2001 manufactured on LTCC technology is a high integration front-end module for wireless application between 2.4 to 2.5GHz ISM band. Consisting of a low noise amplifier and a high efficiency power amplifier, the TM2001 offers significant increases in operating range and performance. It is offered in a 5 X 5mm surface mount module optimized for a 50Ω system. This high efficiency device makes it ideal for Bluetooth, Wireless Data Terminal and portable battery powered equipment. The device also features analog power control to optimize transmit power while maximizing battery life in portable equipments. The power control function also eliminates the need for directional couplers, detector diodes and other power control circuitry.
