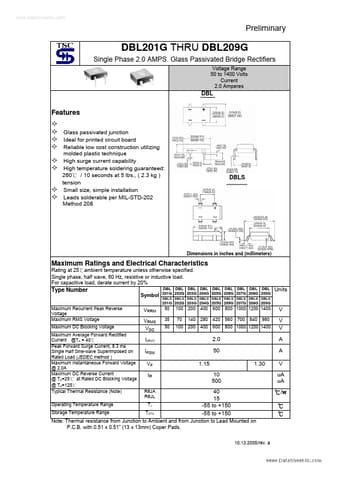

DBL209G, DBL202G - (DBL201G - DBL209G) Glass Passivated Bridge Rectifiers

Taiwan Semiconductor Company

Datasheet Details

Part number	DBL209G, DBL202G
Manufacturer	Taiwan Semiconductor ↗ Company
File Size	135.27 KB
Description	(DBL201G - DBL209G) Glass Passivated Bridge Rectifiers
Datasheet	DBL202G_TaiwanSemiconductorCompany.pdf
Note	This datasheet PDF includes multiple part numbers: DBL209G, DBL202G. Please refer to the document for exact specifications by model.

Glass passivated junction Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique High surge current capability High temperature soldering guaranteed: 260℃ / 10 seconds at 5 lbs. , ( 2.3 kg ) tension Small size, simple installation Leads solderable per MIL-STD-202 Method 208 DBLS Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25℃ambient temperature unless otherwise specified. Single phase.
