SDB12 - (SDB12 - SDB110) Schottky Barrier Rectifiers

Product Overview

Taiwan Semiconductor Company

Part number	SDB12
Manufacturer	Taiwan Semiconductor Company
File Size	131.03 KB
Description	(SDB12 - SDB110) Schottky Barrier Rectifiers
Datasheet	SDB12 Datasheet
Note	This datasheet PDF includes multiple part numbers: SDB12, SDB13. Please refer to the document for exact specifications by model.

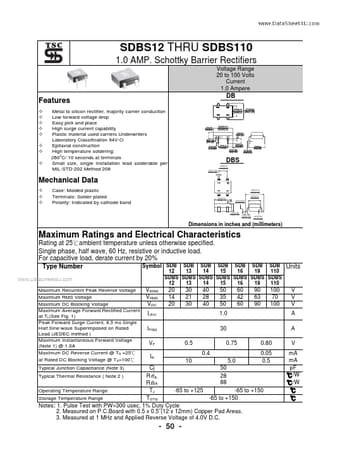

Additional preview pages of the SDB12 datasheet.

Metal to silicon rectifier, majority carrier conduction Low forward voltage drop Easy pick and place High surge current capability Plastic material used carriers Underwriters Laboratory Classification 94V-O Epitaxial construction High temperature soldering: o 260 C/ 10 seconds at terminals Small size, single installation lead solderable per MIL-STD-202 Method 208 DB DBS .047(1.20) .040(1.02) .205(5.2) .195(5.0) Mechanical Data Case: Molded plastic Terminals: Solder plated Polarity: Indicated.
