SRAD360 Datasheet PDF ((SRAD320 - SRAD360) Schottky Barrier Rectifiers) | Download Taiwan Semiconductor Company SRAD360

SRAD360 - (SRAD320 - SRAD360) Schottky Barrier Rectifiers

This page provides the datasheet information for the SRAD360, a member of the SRAD320 (SRAD320 - SRAD360) Schottky Barrier Rectifiers family.

Features

Extremely fast switching Extremely low forward drop Guaranteed reverse avalanche .274(6.95) .270(6.85) .250(6.55) .246(6.45) .250(6.55) .246(6.45) .211(5.36) .207(5.26) D-PAK .093(2.35) .089(2.25) .013(0.54) .011(0.48) Marking .043(1.10) .035(0.90) 0 5 .384(9.75) .364(9.25) .112(2.85) .092(2.35) .059(1.45) .039(0.95) Mechanical Data Cases: Epoxy, molded Weight: 0.4 gram (approximately) Finish: All external surfaces corrosion resistant and terminal leads are readily solderable Lead and mount.

Datasheet Details

Part number	SRAD360
Manufacturer	Taiwan Semiconductor Company
File Size	82.30 KB
Description	(SRAD320 - SRAD360) Schottky Barrier Rectifiers
Datasheet	SRAD360 Datasheet

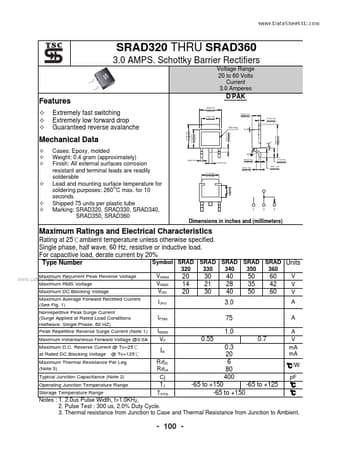

Additional preview pages of the SRAD360 datasheet.

📁 Similar Datasheet

SRA-03VDC-xx - RELAY (Songle)

SRA-05VDC-xx - RELAY (Songle)

SRA-06VDC-xx - RELAY (Songle)

SRA-09VDC-xx - RELAY (Songle)

SRA-1 - Frequency Mixer (Mini-Circuits)

SRA-1+ - Frequency Mixer (Mini-Circuits)

SRA-12VDC-CL - RELAY (Songle)

SRA-12VDC-xx - RELAY (Songle)

SRA-18VDC-xx - RELAY (Songle)

SRA-1H - Frequency Mixer (Mini-Circuits)

Full PDF Text Transcription

Click to expand full text

SRAD320 THRU SRAD360 3.0 AMPS. Schottky Barrier Rectifiers Voltage Range 20 to 60 Volts Current 3.0 Amperes Features Extremely fast switching Extremely low forward drop Guaranteed reverse avalanche .274(6.95) .270(6.85) .250(6.55) .246(6.45) .250(6.55) .246(6.45) .211(5.36) .207(5.26) D-PAK .093(2.35) .089(2.25) .013(0.54) .011(0.48) Marking .043(1.10) .035(0.90) 0 5 .384(9.75) .364(9.25) .112(2.85) .092(2.35) .059(1.45) .039(0.95) Mechanical Data Cases: Epoxy, molded Weight: 0.4 gram (approximately) Finish: All external surfaces corrosion resistant and terminal leads are readily solderable Lead and mounting surface temperature for soldering purposes: 260OC max. for 10 seconds Shipped 75 units per plastic tube Marking: SRAD320, SRAD330, SRAD340, SRAD350, SRAD360 0 5 30 .024(0.60) .
