TS13003, High Voltage NPN Transistor

TS13003 High Voltage NPN Transistor TO-92 Pin Definition: 1.Emitter 2.Collector 3.Base PRODUCT SUMMARY BVCEO 400V BVCBO 700V IC 1.5A VCE(S.
only.

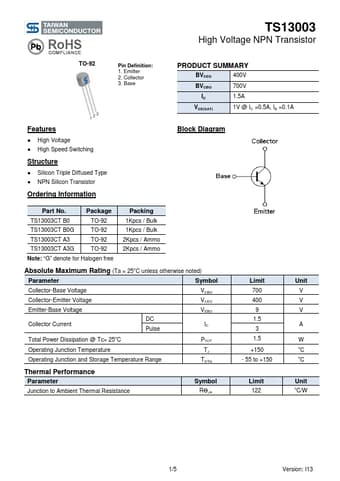

datasheet Preview Page 1 from Datasheet4u.com

TS13003_TaiwanSemiconductorCompany.pdf

TS13003 Datasheet Preview — Preview of TS13003 PDF

Datasheet Details

Part number:

TS13003

Manufacturer:

Taiwan Semiconductor Company

File Size:

132.59 KB

Description:

High Voltage NPN Transistor

Features

* High Voltage
* High Speed Switching Structure
* Silicon Triple Diffused Type
* NPN Silicon Transistor Ordering Information Block Diagram Part No. Package TS13003CT B0 TO-92 TS13003CT B0G TO-92 TS13003CT A3 TO-92 TS13003CT A3G TO-92 Note: “G” denote for Halogen free Pac

Applications

* Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify TSC for any damages resulting from such improper use or sale. 5/5 Version: I13
