TS1518 - White LED Driver

Datasheet Summary

Description

The TS1518 is a step-up DC-DC converter; operates as current source to drive up to 6 white LEDs(VIN at 3.0V) or 8 LEDs(VIN at 3.5V) or 9 LEDs(VIN at 3.5V) in series.

Features

  • Built-in Internal Switch PWM dimming control 100Hz to 1KHz Analog dimming control 2.7V to 7V input range.

📥 Download Datasheet

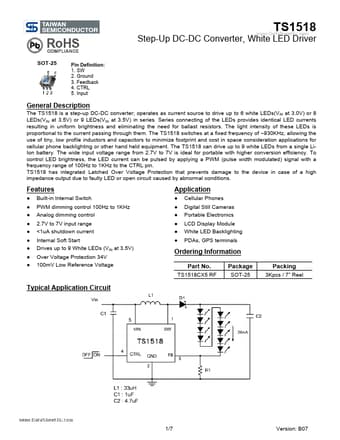

Datasheet preview – TS1518

Datasheet Details

Part number TS1518
Manufacturer Taiwan Semiconductor Company
File Size 378.03 KB
Description White LED Driver
Datasheet download datasheet TS1518 Datasheet
Additional preview pages of the TS1518 datasheet.

📁 Similar Datasheet

  • TS151 - GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (TRSYS)
  • TS1510 - GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (TRSYS)
  • TS1510R - FAST SWITCHING PLASTIC RECTIFIER (TRSYS)
  • TS151R - FAST SWITCHING PLASTIC RECTIFIER (TRSYS)
  • TS15 - CERAMIC DISC CAPACITOR (Suntan)
  • TS150 - GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (TRSYS)
  • TS150R - FAST SWITCHING PLASTIC RECTIFIER (TRSYS)
  • TS152 - GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (TRSYS)
  • TS152R - FAST SWITCHING PLASTIC RECTIFIER (TRSYS)
  • TS154 - GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (TRSYS)
Other Datasheets by Taiwan Semiconductor Company
  • TS1520 - White LED Driver
  • TS10P01G - Glass Passivated Bridge Rectifiers
  • TS10P02G - Glass Passivated Bridge Rectifiers
  • TS10P03G - Glass Passivated Bridge Rectifiers
  • TS10P04G - Glass Passivated Bridge Rectifiers
  • TS10P05G - Glass Passivated Bridge Rectifiers
  • TS10P06G - Glass Passivated Bridge Rectifiers
  • TS10P07G - Glass Passivated Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text
Step-Up DC-DC Converter, White LED Driver SOT-25 Pin Definition: 1. SW 2. Ground 3. Feedback 4. CTRL 5. Input www.DataSheet4U.com TS1518 General Description The TS1518 is a step-up DC-DC converter; operates as current source to drive up to 6 white LEDs(VIN at 3.0V) or 8 LEDs(VIN at 3.5V) or 9 LEDs(VIN at 3.5V) in series. Series connecting of the LEDs provides identical LED currents resulting in uniform brightness and eliminating the need for ballast resistors. The light intensity of these LEDs is proportional to the current passing through them. The TS1518 switches at a fixed frequency of ~930KHz, allowing the use of tiny, low profile inductors and capacitors to minimize footprint and cost in space consideration applications for cellular phone backlighting or other hand held equipment.
