TS1900 Datasheet - Taiwan Semiconductor Company

Ultra Low Quiescent Current Smart Load Switch

TS1900 Features

* 1.8 to 6.5V Input Voltage Range Slew Rate Limited at 100uS Very Low R DS(ON), Typically 100mΩ Less than 1uA Shutdown Current Very Low Quiescent Current, Typically 2uA Fast Shutdown Load Discharge Thermal Fault Protection TTL / CMOS Input Lo

TS1900 General Description

TS1900 is a high side slew rate controlled smart load switch. The slew rate control in TS1900 can effectively avoid the large in-rush current which is commonly observed in normal power switches. Moreover, the level shift in TS1900 allows customers to control 1.8 to 6.5V system with 1.5V logic and wi.

TS1900 Datasheet (257.18 KB)

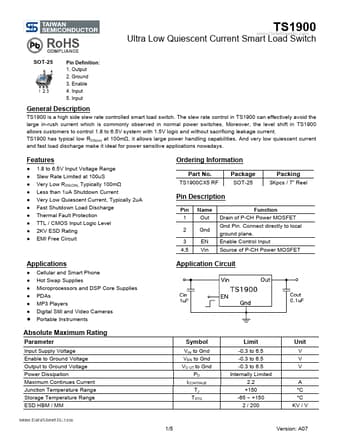

TS1900 Datasheet Preview — Preview of TS1900 PDF

Datasheet Details

Part number:

TS1900

Manufacturer:

Taiwan Semiconductor Company

File Size:

257.18 KB

Description:

Ultra low quiescent current smart load switch.
Ultra Low Quiescent Current Smart Load Switch SOT-25 Pin Definition: 1. Output 2. Ground 3. Enable 4. Input 5. Input www.DataSheet4U.com TS1900 Gen.
