1N4756G Datasheet - Taiwan Semiconductor

1W DO-41 Zener Volatge Regulators

1N4756G Features

* - Zener voltage range 3.3 to 56Volts - DO-41 package (JEDEC) - Through-hole device type mounting - Hermetically sealed glass - Compression bonded construction - All external surfaces are corrosion resistant and terminals are readily solderable - Solder hot dip tin(Sn) lead finish - Pb free and RoHS

1N4756G General Description

Green compound Version: F1606 Small Signal Product PACKAGE OUTLINE DIMENSIONS DO-41 MARKING DIAGRAM XX XX XXX 1N 47 XXG 1N4728G ~ 1N4758G Taiwan Semiconductor DIM. A B C D Unit (mm) Min Max 0.50 0.90 3.50 5.20 22.00 * 1.80 2.80 Unit (inch) Min Max 0.020 0.035 0.138 0.205 .

1N4756G Datasheet (336.34 KB)

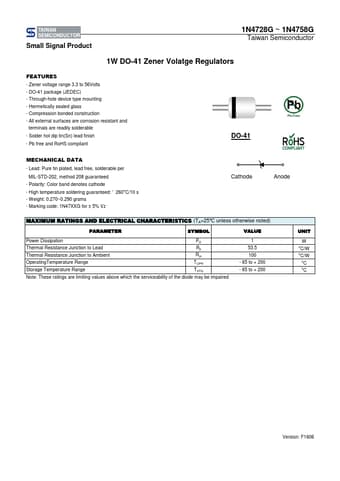

Preview of 1N4756G PDF

Datasheet Details

Part number:

1N4756G

Manufacturer:

Taiwan Semiconductor

File Size:

336.34 KB

Description:

1w do-41 zener volatge regulators.
