1N914BW - 400mW High Speed SMD Switching Diode

Datasheet Summary

Features

  • —Fast switching device(Trr.

📥 Download Datasheet

Datasheet preview – 1N914BW

Datasheet Details

Part number 1N914BW
Manufacturer Taiwan Semiconductor
File Size 180.17 KB
Description 400mW High Speed SMD Switching Diode
Datasheet download datasheet 1N914BW Datasheet
Additional preview pages of the 1N914BW datasheet.

📁 Similar Datasheet

  • 1N914BW - SURFACE MOUNT SWITCHING DIODES (PACELEADER)
  • 1N914BWS - Small-Signal Diodes (ON Semiconductor)
  • 1N914BWT - High Conductance Fast Switching Diode (Fairchild Semiconductor)
  • 1N914BWT - 200mW SOD-523 SURFACE MOUNT DIODES (YS)
  • 1N914BWT - High Conductance Fast Switching Diode (ON Semiconductor)
  • 1N914B - Silicon Rectifier Diode (NTE)
  • 1N914B - SWITCHING RECTIFIERS (Digitron Semiconductors)
  • 1N914B - HIGH SPEED SWITCHING DIODES (EIC)
  • 1N914B - 500mW 100 Volt Silicon Epitaxial Diodes (MCC)
  • 1N914B - SIGNAL DIODE (WILLAS)
Other Datasheets by Taiwan Semiconductor
  • 1N914BWS - 200mW High Speed SMD Switching Diode
  • 1N914B - High Speed Switching Diode

Full PDF Text Transcription

Click to expand full text

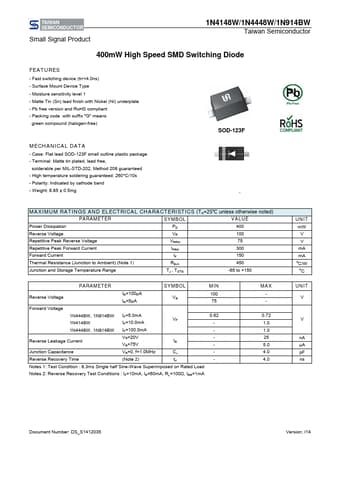

Small Signal Diode 1N4148W/1N4448W/1N914BW 400mW High Speed SMD Switching Diode SOD-123F B Features —Fast switching device(Trr<4.0nS) —Surface device type mounting —Moisture sensitivity level 1 —Matte Tin(Sn) lead finish with Nickel(Ni) underplate —Pb free version and RoHS compliant —Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code Mechanical Data —Case : Flat lead SOD-123 small outline plastic package —Terminal: Matte tin plated, lead free., solderable per MIL-STD-202, Method 208 guaranteed —High temperature soldering guaranteed: 260 °C/10s —Polarity : Indicated by cathode band —Weight : 8.85±0.5 mg —Marking Code : D1, D2, D3 CA D E F Dimensions A B C D E F Unit (mm) Unit (inch) Min 1.5 3.3 0.5 2.5 0.8 0.05 Max Min Max 1.7 0.059 0.067 3.
