1N914BWS - 200mW High Speed SMD Switching Diode

Datasheet Summary

Features

◇ Fast switching device(Trr.

Taiwan Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	1N914BWS
Manufacturer	Taiwan Semiconductor
File Size	152.00 KB
Description	200mW High Speed SMD Switching Diode
Datasheet	1N914BWS Datasheet
Additional preview pages of the 1N914BWS datasheet.

📁 Similar Datasheet

1N914BWS - Small-Signal Diodes (ON Semiconductor)
1N914BW - SURFACE MOUNT SWITCHING DIODES (PACELEADER)
1N914BWT - High Conductance Fast Switching Diode (Fairchild Semiconductor)
1N914BWT - 200mW SOD-523 SURFACE MOUNT DIODES (YS)
1N914BWT - High Conductance Fast Switching Diode (ON Semiconductor)
1N914B - Silicon Rectifier Diode (NTE)
1N914B - SWITCHING RECTIFIERS (Digitron Semiconductors)
1N914B - HIGH SPEED SWITCHING DIODES (EIC)
1N914B - 500mW 100 Volt Silicon Epitaxial Diodes (MCC)
1N914B - SIGNAL DIODE (WILLAS)

Other Datasheets by Taiwan Semiconductor

1N914BW - 400mW High Speed SMD Switching Diode
1N914B - High Speed Switching Diode

Full PDF Text Transcription

Click to expand full text

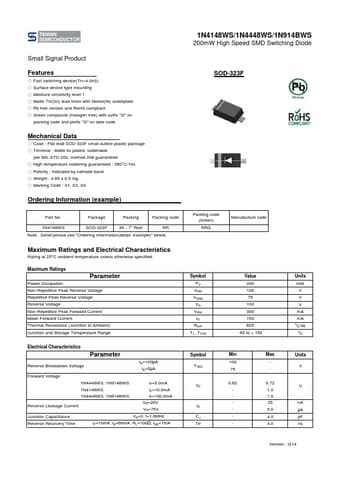

1N4148WS/1N4448WS/1N914BWS 200mW High Speed SMD Switching Diode Small Signal Product Features ◇ Fast switching device(Trr<4.0nS) ◇ Surface device type mounting ◇ Moisture sensitivity level 1 ◇ Matte Tin(Sn) lead finish with Nickel(Ni) underplate ◇ Pb free version and RoHS compliant ◇ Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code Mechanical Data ◇ Case : Flat lead SOD-323F small outline plastic package ◇ Terminal : Matte tin plated, solderable per MIL-STD-202, method 208 guaranteed ◇ High temperature soldering guaranteed : 260°C/10s ◇ Polarity : Indicated by cathode band ◇ Weight : 4.85 ± 0.5 mg ◇ Marking Code : S1, S2, S3 Ordering Information (example) SOD-323F Part No.
