78L05 - 3-Terminal 100mA Positive Voltage Regulator

This page provides the datasheet information for the 78L05, a member of the 78L03 3-Terminal 100mA Positive Voltage Regulator family.

Datasheet Summary

Description

The TS78L00 Series of positive voltage Regulators are inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100mA.

Features

  • Output Voltage Range 3.3V, 5V, 9V, 12V, 15V, 24V.
  • Output current up to 100mA.
  • No external components required.
  • Internal thermal overload protection.
  • Internal short-circuit current limiting.
  • Output transistor safe-area compensation.
  • Output voltage offered in 4% tolerance.
  • RoHS compliant.
  • Halogen-free according to IEC 61249-2-21.

📥 Download Datasheet

Datasheet preview – 78L05

Datasheet Details

Part number 78L05
Manufacturer Taiwan Semiconductor
File Size 765.68 KB
Description 3-Terminal 100mA Positive Voltage Regulator
Datasheet download datasheet 78L05 Datasheet
Additional preview pages of the 78L05 datasheet.

📁 Similar Datasheet

  • 78L05 - Positive voltage regulators (STMicroelectronics)
  • 78L05 - THREE TERMINAL POSITIVE VOLTAGE REGULATORS (KIA)
  • 78L05 - 3-Terminal positive voltage regulator (SEMTECH)
  • 78L05 - 100-mA Fixed Output Linear Regulator (Texas Instruments)
  • 78L05 - Positive-Voltage Regulators (Wing Shing)
  • 78L05 - 3-TERMINALS 0.1A POSITIVE VOLTAGE REGULATOR (Unisonic Technologies)
  • 78L05 - voltage regulators (GMC)
  • 78L05 - Three-terminal positive voltage regulator (LGE)
  • 78L05 - 3-Terminal Positive Regulators (National Semiconductor)
  • 78L05 - Positive voltage regulators (EVVOSEMI)
Other Datasheets by Taiwan Semiconductor
  • 78L03 - 3-Terminal 100mA Positive Voltage Regulator
  • 78L09 - 3-Terminal 100mA Positive Voltage Regulator
  • 78L12 - 3-Terminal 100mA Positive Voltage Regulator
  • 78L15 - 3-Terminal 100mA Positive Voltage Regulator
  • 78L24 - 3-Terminal 100mA Positive Voltage Regulator

Full PDF Text Transcription

Click to expand full text

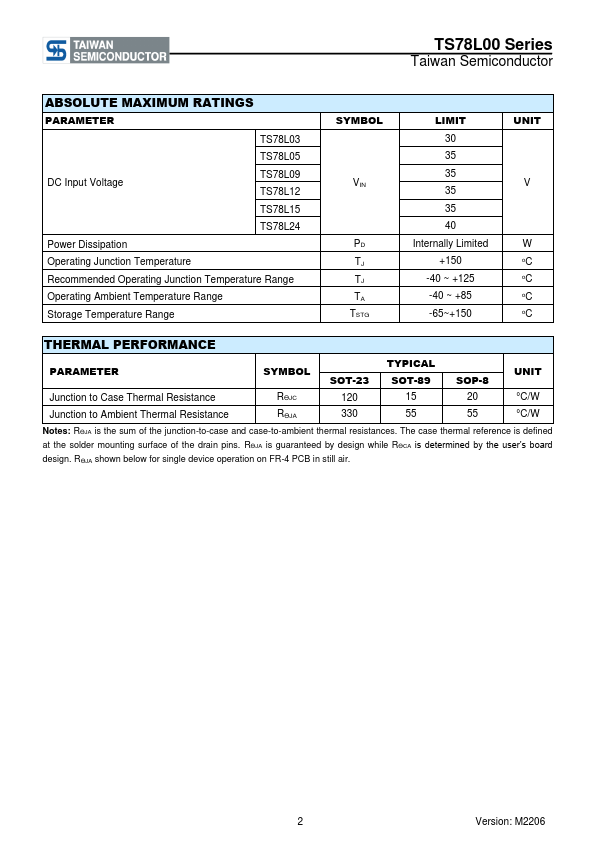

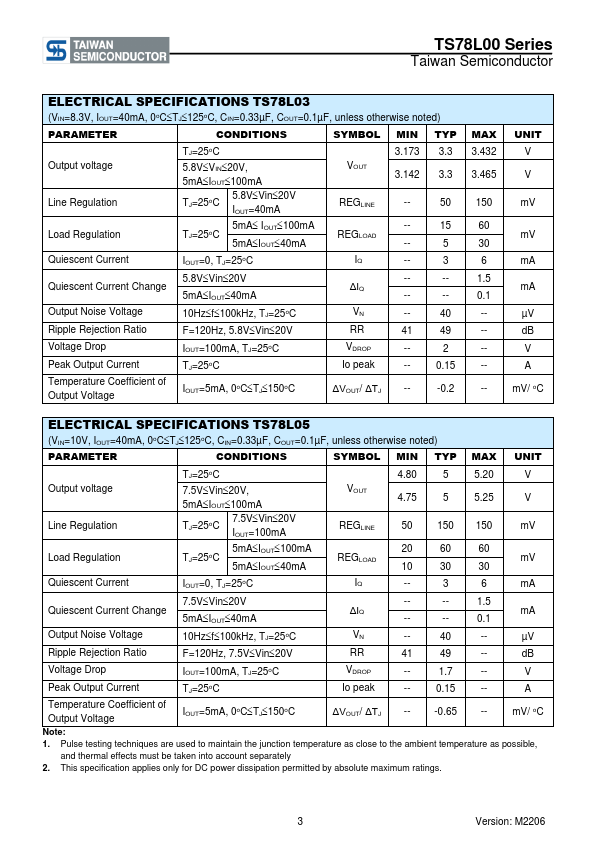

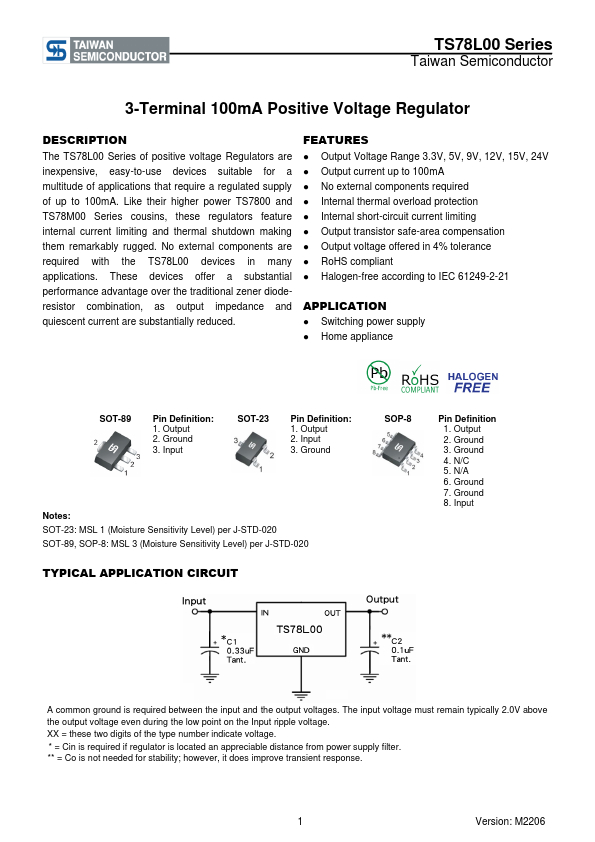

TS78L00 Series Taiwan Semiconductor 3-Terminal 100mA Positive Voltage Regulator DESCRIPTION The TS78L00 Series of positive voltage Regulators are inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100mA. Like their higher power TS7800 and TS78M00 Series cousins, these regulators feature internal current limiting and thermal shutdown making them remarkably rugged. No external components are required with the TS78L00 devices in many applications. These devices offer a substantial performance advantage over the traditional zener dioderesistor combination, as output impedance and quiescent current are substantially reduced. FEATURES ● Output Voltage Range 3.
