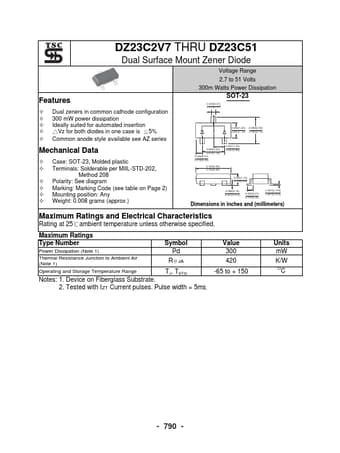

DZ23C6V2 Datasheet | Taiwan Semiconductor

Features Dual zeners in mon cathode configuration 300 m W power dissipation Ideally suited for automated insertion △Vz for both diodes in one case is ≦5% mon anode style available see AZ series Mechanical Data Case: SOT-23, Molded plastic Terminals: Solderable per MIIL-STD-202, Method 208 Polarity: See diagram Marking: Marking Code (see table on Page 2) Mounting position: Any Weight: 0.008 grams (approx.) Voltage Range 2.7 to 51 Volts 300m Watts Power Dissipation SOT-23 0.020(0.51) 0.015(0.37) 0.055(1.40) 0.098(2.50) 0.047(1.19) 0.083(2.10) 0.080(2.05) 0.070(1.78) 0.024(0.61) 0.018(0.45) 0.120(3.05) 0.104(2.65) 0.041(1.05) 0.047(0.89) 0.043(1.10) 0.035(0.89) 0.006(0.15) 0.001(0.013) 0.024(0.61) 0.018(0.45) 0.007(0.178) 0.003(0.076) Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25℃ambient temperature unless otherwise specified. Maximum Ratings Type Number Symbol Power Dissipation (Note 1) Pd Thermal Resistance Junction to Ambient Air (Note 1) RθJA Operating and Storage Temperature Range TJ, TSTG Notes: 1. Device on Fiberglass Substrate. 2. Tested with IZT Current pulses. Pulse width = 5ms. Value 300 420 -65 to + 150 Units m W K/W OC - 790 - ELECTRICAL CHARACTERISTICS (TA=25OC unless otherwise noted) Zener Maximum Typical Min...
