ES15JLW, ES15DLW, Surface Mount Super Fast Rectifier

ES15DLW - ES15JLW Taiwan Semiconductor 1.5A, 200V - 600V Surface Mount Super Fast Rectifier .

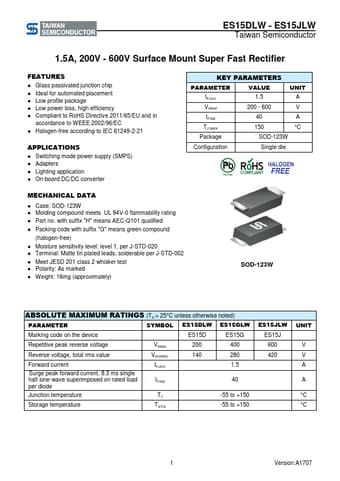

datasheet Preview Page 1 from Datasheet4u.com

ES15DLW-TaiwanSemiconductor.pdf

ES15JLW Datasheet Preview — This datasheet PDF includes multiple part numbers: ES15JLW, ES15DLW. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ES15JLW, ES15DLW

Manufacturer:

Taiwan Semiconductor

File Size:

290.70 KB

Description:

Surface Mount Super Fast Rectifier

Note:

This datasheet PDF includes multiple part numbers: ES15JLW, ES15DLW.
Please refer to the document for exact specifications by model.

Features

* Glass passivated junction chip
* Ideal for automated placement
* Low profile package
* Low power loss, high efficiency
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* On-board DC/DC converter KEY PARAMETERS PARAMETER VALUE UNIT IF(AV) VRRM IFSM TJ MAX Package 1.5 200 - 600 40 150 SOD-123W A V A °C Configuration Single die MECHANICAL DATA
* Case: SOD-123W
* M
