ES2DALH, ES2BALH, Super Fast Surface Mount Rectifier

ES2BALH * ES2JALH Taiwan Semiconductor 2A, 100V - 600V Super Fast Surface Mount Rectifier .

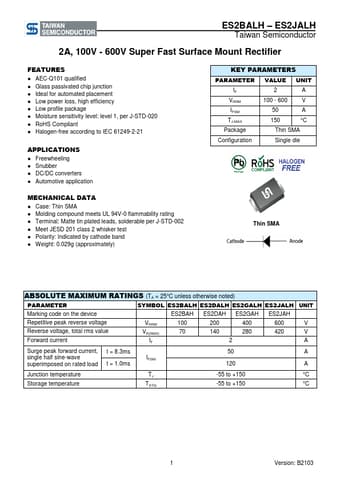

datasheet Preview Page 1 from Datasheet4u.com

ES2BALH-TaiwanSemiconductor.pdf

ES2DALH Datasheet Preview — This datasheet PDF includes multiple part numbers: ES2DALH, ES2BALH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ES2DALH, ES2BALH

Manufacturer:

Taiwan Semiconductor

File Size:

462.98 KB

Description:

Super Fast Surface Mount Rectifier

Note:

This datasheet PDF includes multiple part numbers: ES2DALH, ES2BALH.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified
* Glass passivated chip junction
* Ideal for automated placement
* Low power loss, high efficiency
* Low profile package
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant

Applications

* Freewheeling
* Snubber
* DC/DC converters
* Automotive application KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM TJ MAX Package 2 A 100 - 600 V 50 A 150 °C Thin SMA Configuration Single die MECHANICAL DATA
* Case: Thin SMA
* Molding compound meets UL 94V-0
