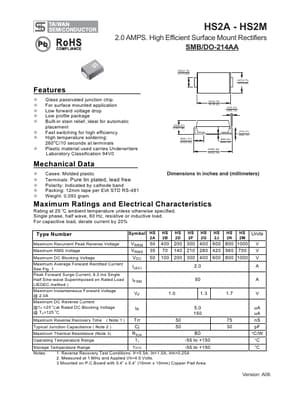

HS2K - (HS2A - HS2M) High Efficient Surface Mount Rectifiers

Taiwan Semiconductor

Datasheet Details

Glass passivated junction chip. For surface mounted application Low forward voltage drop Low profile package Built-in stain relief, ideal for automatic placement Fast switching for high efficiency High temperature soldering: o 260 C/10 seconds at terminals Plastic material used carries Underwriters Laboratory Classification 94V0 .187(4.75) .167(4.25) .012(.31) .006(.15) .103(2.61) .078(1.99) .012(.31) .006(.15) .056(1.41) .035(0.90) .209(5.30) .201(5.10) .008(.20) .004(.10) Mechanical Data Cas.
