LL914B High Speed SMD Switching Diode

Taiwan Semiconductor

LL914B Description

LL4148/LL4448/LL914B Taiwan Semiconductor 150mA, 75V Surface Mount Switching Diode .
only.

LL914B Features

* Low power loss, high efficiency
* High surge current capability
* Hermetically sealed glass

LL914B Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* On-board DC/DC converter KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM VF at IF = 100mA TJ MAX Package 150 mA 75 V 4 A 1 V 175 °C MMELF Configuration Single die MECHANICAL DATA
* Case: MM

📥 Download Datasheet

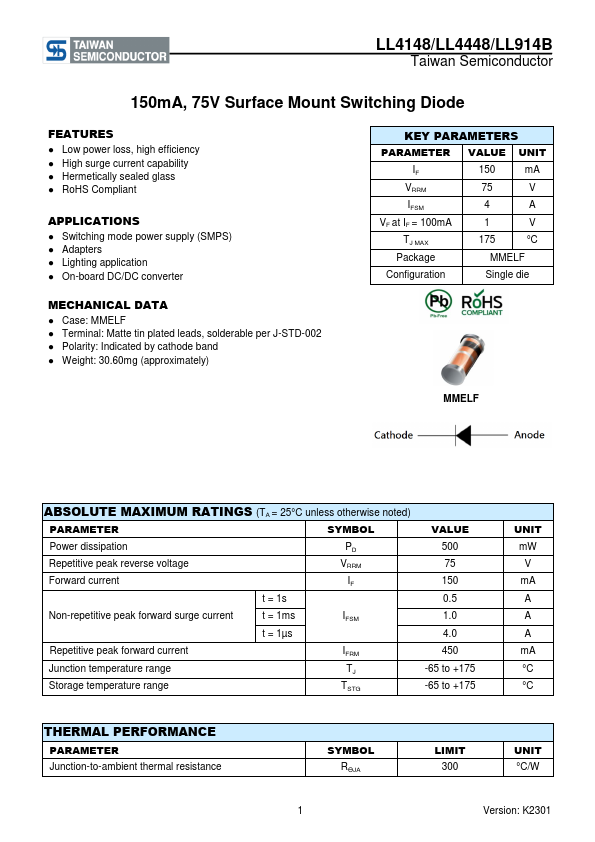

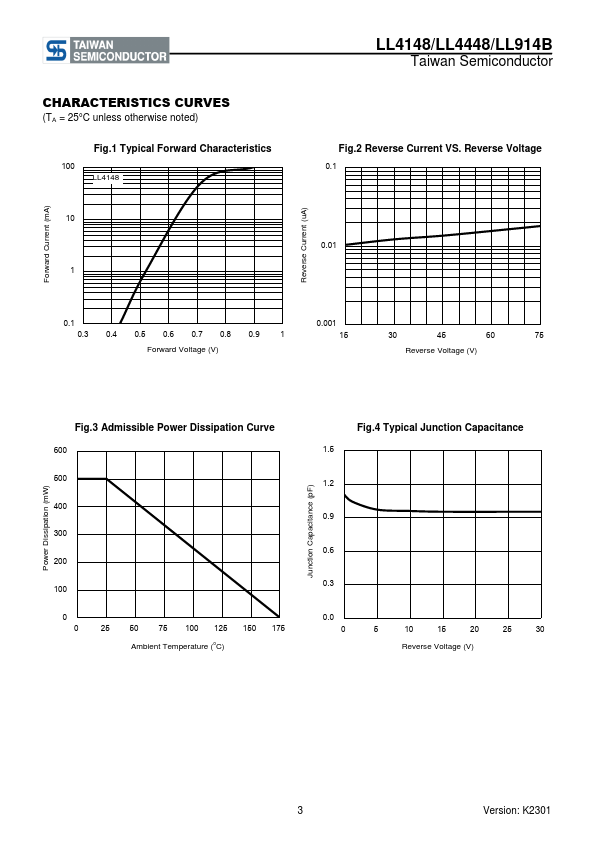

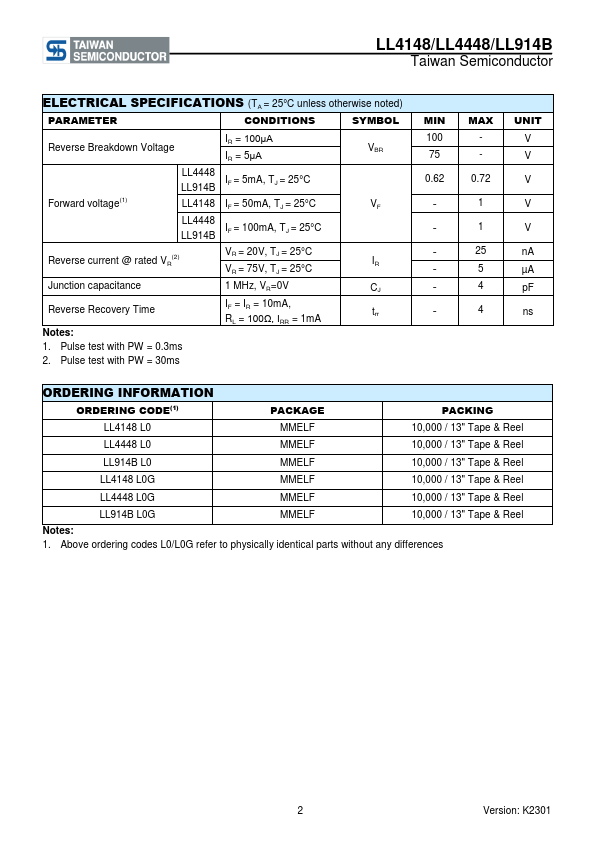

LL914B Datasheet Preview — Preview of LL914B PDF

Datasheet Details

Part number: LL914B
Manufacturer: Taiwan Semiconductor
File Size: 239.96 KB
Datasheet: LL914B-TaiwanSemiconductor.pdf
Description: High Speed SMD Switching Diode
