MBR4090PT, MBR40100PT - Dual Common Cathode Schottky Rectifier

Name: MBR4090PT
SKU: MBR4090PT-1215787

Taiwan Semiconductor

The MBR4090PT by Taiwan Semiconductor is a Dual Common Cathode Schottky Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	MBR4090PT, MBR40100PT
Manufacturer	Taiwan Semiconductor
File Size	216.08 KB
Description	Dual Common Cathode Schottky Rectifier
Datasheet	MBR40100PT-TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MBR4090PT, MBR40100PT. Please refer to the document for exact specifications by model.

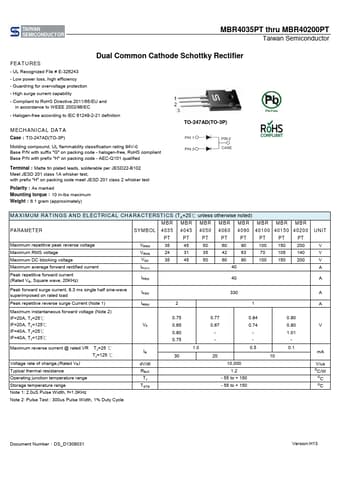

Additional preview pages of the MBR4090PT datasheet.

- UL Recognized File # E-326243 - Low power loss, high efficiency - Guardring for overvoltage protection - High surge current capability - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition.
