MBRF2545CT, MBRF2535CT Datasheet - Taiwan Semiconductor

MBRF2545CT Dual Common Cathode Schottky Rectifier

Green compound AVERAGE FORWARD CURRENT (A) FIG.1 FORWARD CURRENT DERATING CURVE 30 25 20 15 10 RESISTIVE OR INDUCTIVE LOAD 5 WITH HEATSINK 0 50 60 70 80 90 100 110 120 130 140 150 CASE TEMPERATURE (oC) PEAK FORWARD SURGE CURRENT (A) FIG. 2 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT PER LEG 225.

MBRF2545CT Features

* - Low power loss, high efficiency - Guardring for overvoltage protection - High surge current capability - UL Recognized File # E-326243 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition MECHANICAL DATA Case: ITO-22

MBRF2535CT-TaiwanSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MBRF2545CT, MBRF2535CT. Please refer to the document for exact specifications by model.

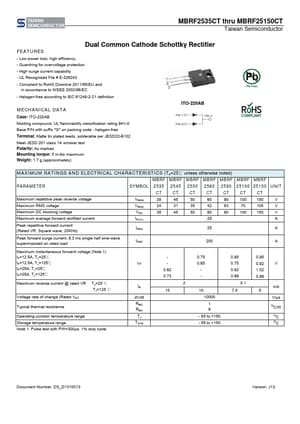

MBRF2545CT Datasheet Preview Page 2 MBRF2545CT Datasheet Preview Page 3

Datasheet Details

Part number:

MBRF2545CT, MBRF2535CT

Manufacturer:

Taiwan Semiconductor

File Size:

219.00 KB

Description:

Dual common cathode schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: MBRF2545CT, MBRF2535CT.
Please refer to the document for exact specifications by model.
